RYM002N05 Series

0.9V Drive Nch MOSFET

Catalog

0.9V Drive Nch MOSFET

Part	FET Type	Power Dissipation (Max) [Max]	Package / Case	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Technology	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Mounting Type	Operating Temperature	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds

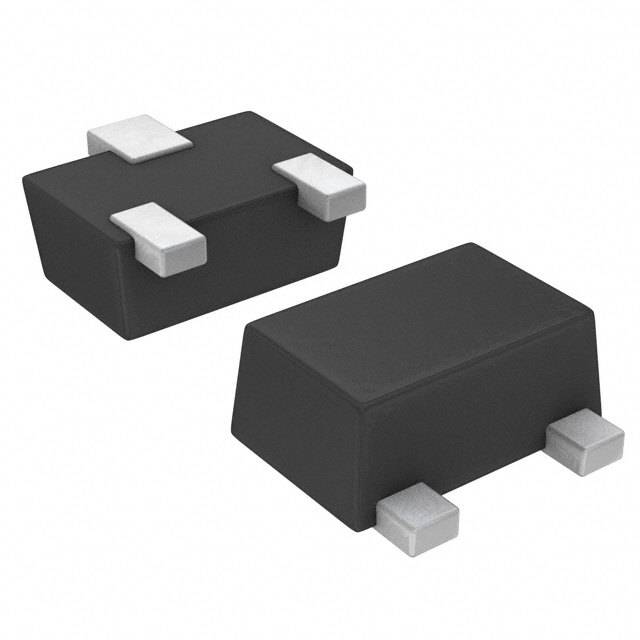

Rohm Semiconductor RYM002N05T2CL	N-Channel	150 mW	SOT-723	50 V	200 mA	MOSFET (Metal Oxide)	8 V	0.9 V 4.5 V	VMT3	Surface Mount	150 °C	800 mV	26 pF

Catalog

0.9V Drive Nch MOSFET

Description

MOSFETs are made as ultra-low ON-resistance by the micro-processing technologies suitable for mobile equipment for low current consumption. In wide lineup including compact type, high-power type and complex type to meet in the market.
