896-015 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 15POS 0.125

...

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Termination	Flange Feature	Read Out	Number of Positions/Bay/Row	Number of Rows	Gender	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions	Card Type	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]

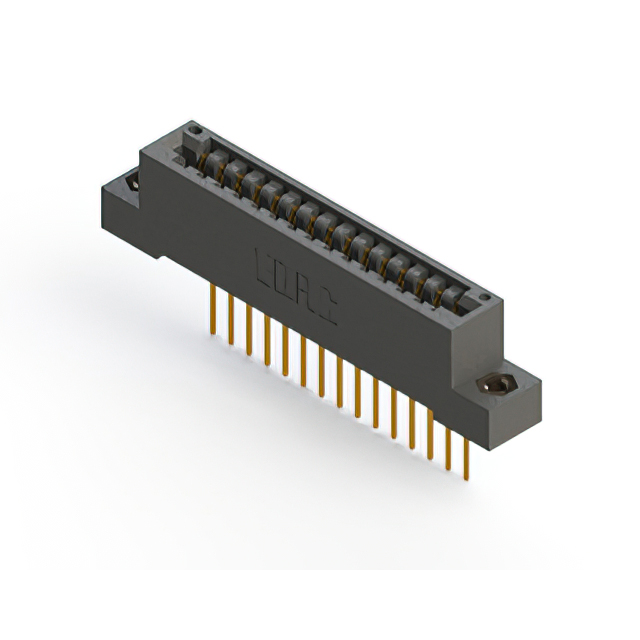

EDAC Inc. 896-015-540-108	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole
EDAC Inc. 896-015-522-108	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder	4-40 Flush Mount Threaded Insert Top Opening	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole

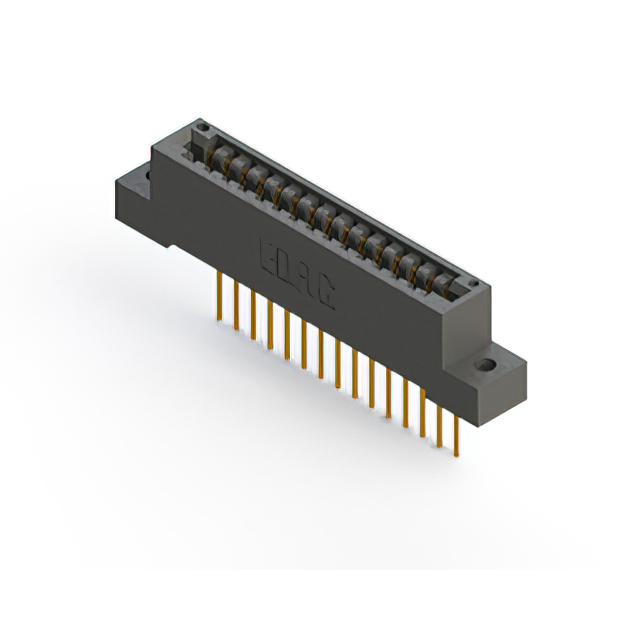

EDAC Inc. 896-015-541-102	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Wire Wrap	Flush Mount Top Opening Unthreaded	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole	3.25 mm	0.128 "
EDAC Inc. 896-015-522-608	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder	4-40 Threaded Insert Top Mount Opening	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole

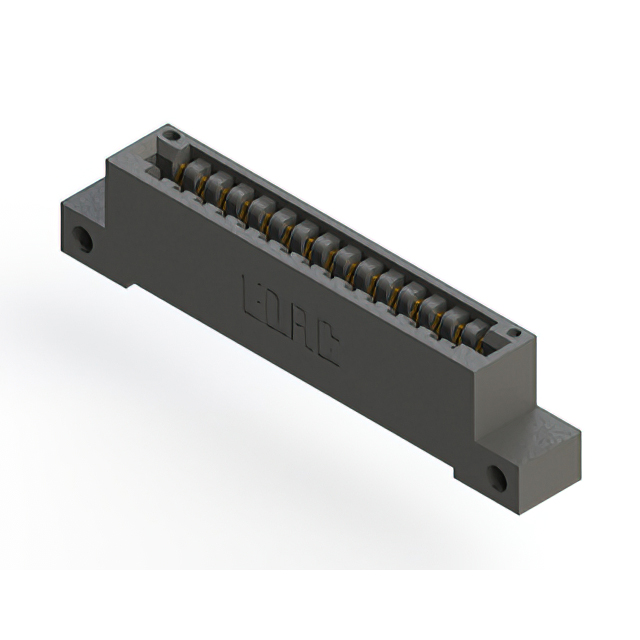

EDAC Inc. 896-015-521-112	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder	Flush Mount Side Opening Unthreaded	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole	3.25 mm	0.128 "

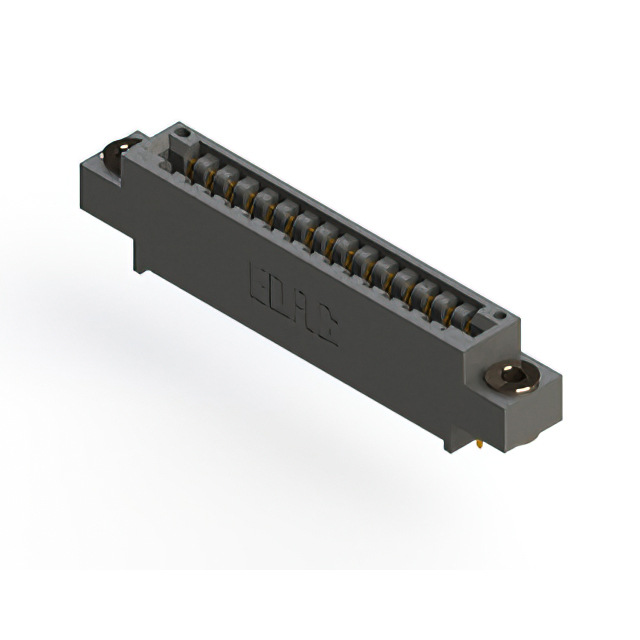

EDAC Inc. 896-015-520-603	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder	Floating Bobbin Top Mount Opening	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole	2.95 mm	0.116 "

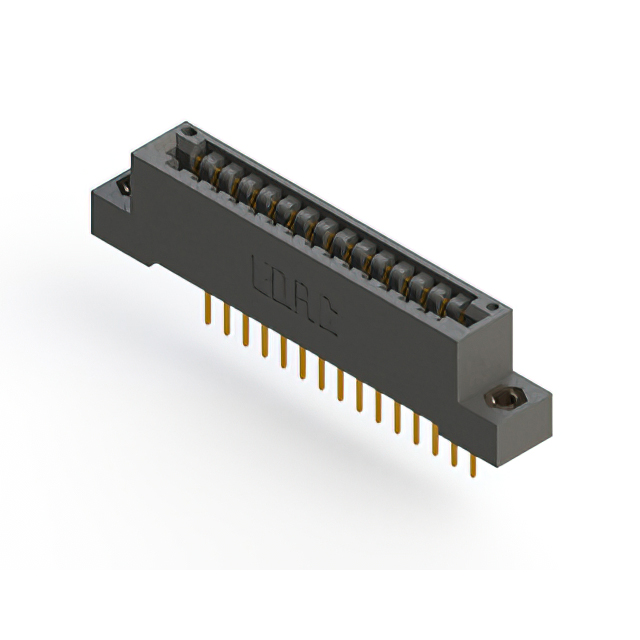

EDAC Inc. 896-015-522-107	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder	Flush Mount M3 Threaded Insert Top Opening	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole

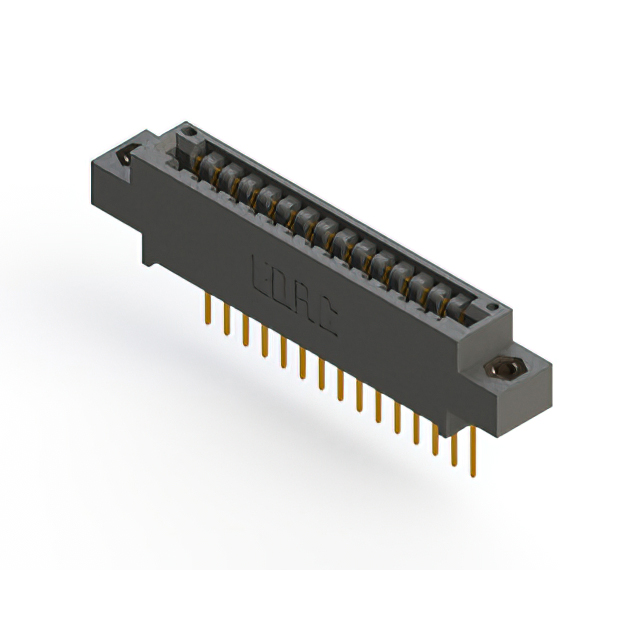

EDAC Inc. 896-015-522-607	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder	M3 Threaded Insert Top Mount Opening	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole

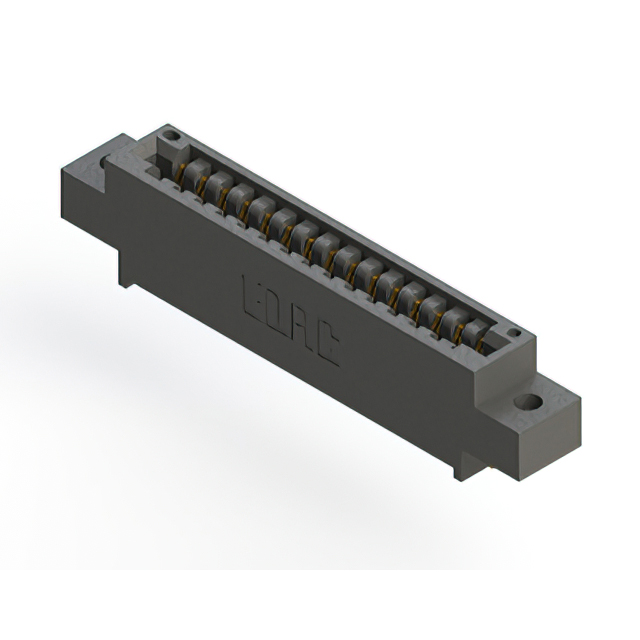

EDAC Inc. 896-015-521-602	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder		Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole	3.25 mm	0.128 "
EDAC Inc. 896-015-521-603	1	Polyphenylene Sulfide (PPS)	3.18 mm	0.125 in	Solder	Floating Bobbin Top Mount Opening	Single	15	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Black	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	15	Non Specified - Single Edge	Through Hole	2.95 mm	0.116 "
