M20-789 Series

Catalog

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, RECEPTACLE, 8, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Part	Contact Material	Insulation Material	Contact Shape	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Connector Type	Contact Type	Mounting Type	Number of Positions	Style	Voltage Rating	Termination	Insulation Color	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating

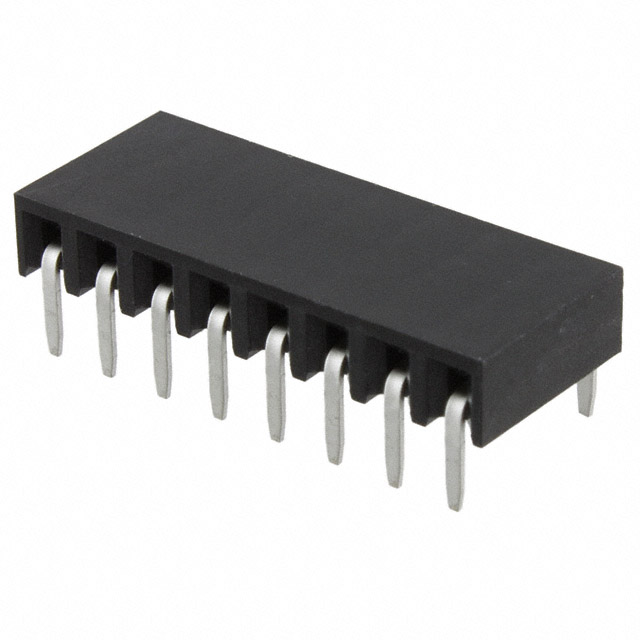

Harwin Inc. M20-7890846	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	100 çin	2.54 çm	0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	8	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C

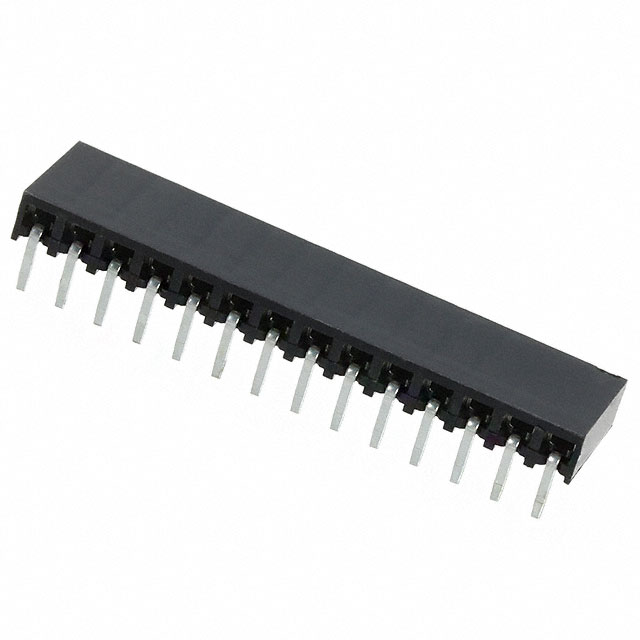

Harwin Inc. M20-7891442	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications			0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	14	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C	Gold

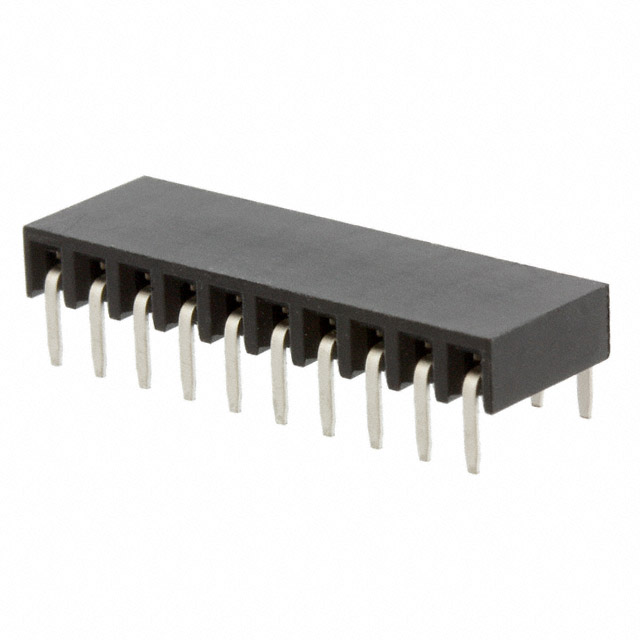

Harwin Inc. M20-7891046	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	100 çin	2.54 çm	0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	10	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C
Harwin Inc. M20-7890442	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications			0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	4	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C	Gold
Harwin Inc. M20-7890642	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications			0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	6	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C	Gold
Harwin Inc. M20-7892046	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	100 çin	2.54 çm	0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	20	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C

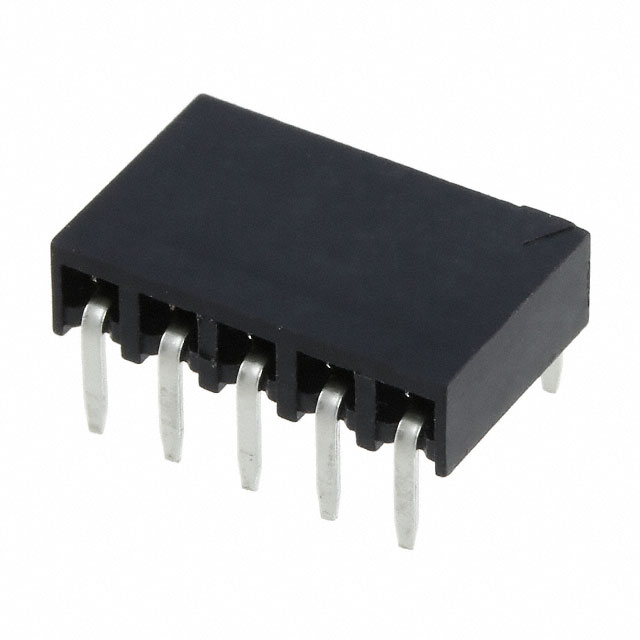

Harwin Inc. M20-7890546	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	100 çin	2.54 çm	0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	5	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C

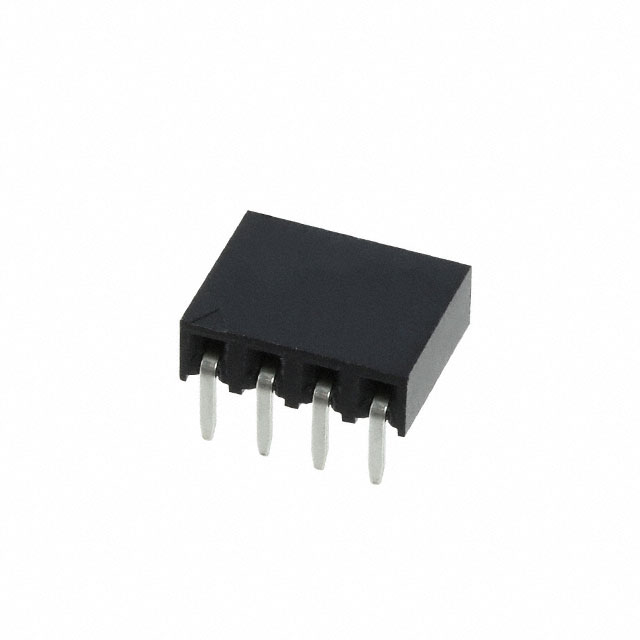

Harwin Inc. M20-7890446	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	100 çin	2.54 çm	0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	4	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C
Harwin Inc. M20-7893646	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications	100 çin	2.54 çm	0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	36	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C

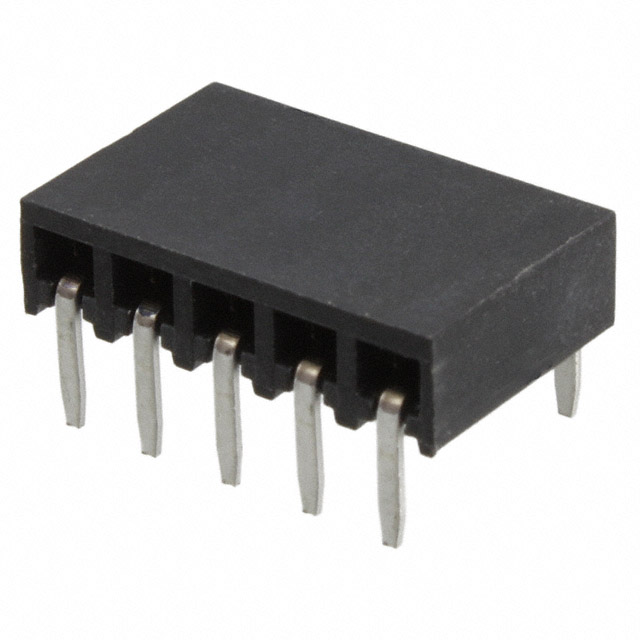

Harwin Inc. M20-7890542	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	General Purpose Industrial Telecommunications			0.1 "	2.54 mm	Push-Pull	All	Receptacle	Female Socket	Right Angle Through Hole	5	Board to Board Cable	1000 VDC	Solder	Black	UL94 V-0	0.118 in	3 mm	3 A	Tin	0.13 in	3.3 mm	1	-40 C	105 ░C	Gold
