R14220 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

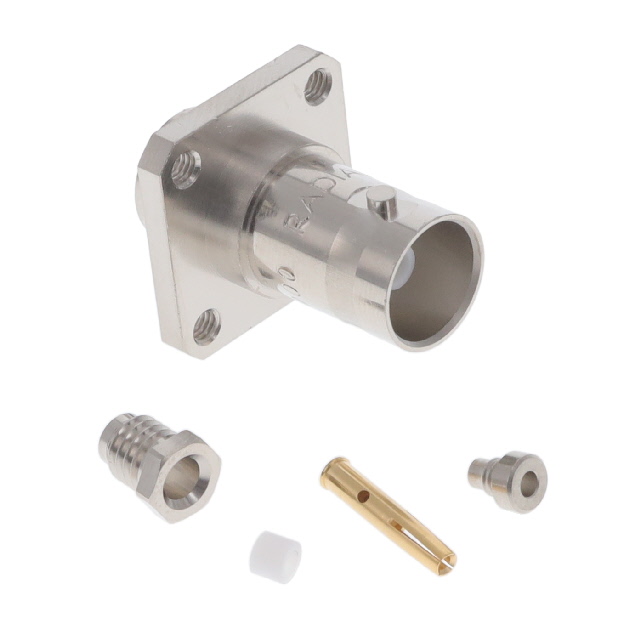

BNC / STRAIGHT SQUARE FLANGE JAC
| Part | Body Material | Voltage Rating | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Cable Group | Mounting Type | Shield Termination | Connector Type | Contact Termination | Fastening Type | Housing Color | Mounting Feature | Number of Ports | Connector Style | Center Contact Material | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 335 V | Nickel | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | RG-179 | Panel Mount | Clamp | Female Socket Jack | Solder | Bayonet Lock | Silver | Flange | 1 | BNC | Beryllium Copper | 75 Ohms | 1.5 GHz |
