MHDGWT Series
Manufacturer: New Energy
Beta
⌘K

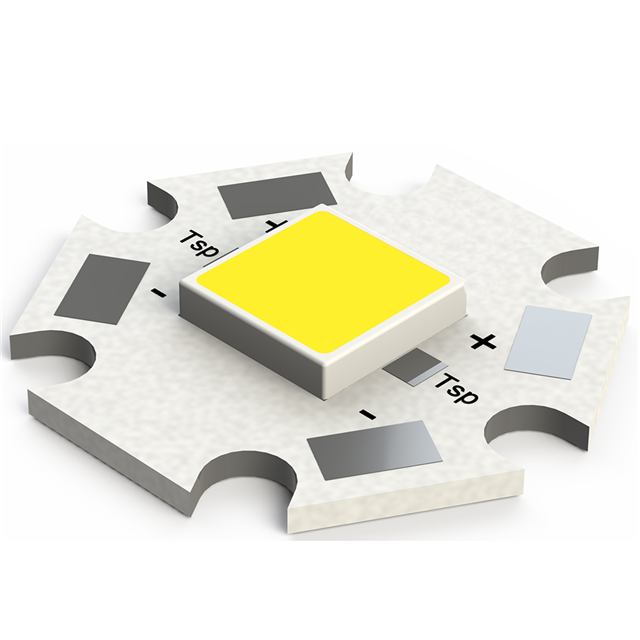

LED MOD MHD-G WHT STARBRD 2700K
| Part | Size / Dimension [diameter] | Height [z] | Current - Max [Max] | CRI (Color Rendering Index) | Voltage - Forward (Vf) (Typ) | Current - Test | Lens Type | Configuration | Temperature - Test | Color | Lumens/Watt @ Current - Test | Viewing Angle | Type | Luminous Flux @ Current/Temperature | CCT (K) | CCT (K) | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 New Energy | 19.89 mm | 1.5 mm | 500 mA | 80 | 36.4 V | 350 mA | Flat | Starboard | 85 °C | Warm White | 105 lm/W | 115 ° | LED Module | 1335 lm | 2700 K | 3-Step MacAdam Ellipse | ||
New Energy | 19.89 mm | 1.5 mm | 500 mA | 70 | 36.4 V | 350 mA | Flat | Starboard | 85 °C | Neutral White | 121 lm/W | 115 ° | LED Module | 1538 lm | 4000 K | 1485 lm | 1590 lm | |
New Energy | 19.89 mm | 1.5 mm | 500 mA | 70 | 36.4 V | 350 mA | Flat | Starboard | 85 °C | Cool White | 130 lm/W | 115 ° | LED Module | 1650 lm | 6500 K | 1590 lm | 1710 lm |
