093112 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

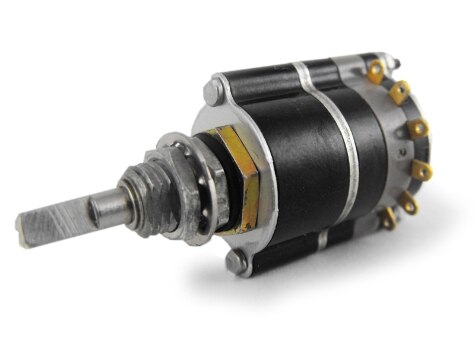

ROTARY SWITCHES 09A30-02-2-03S
| Part | Circuit per Deck | Actuator Type | Contact Finish | Voltage Rating - DC | Contact Timing | Actuator Length [x] | Termination Style | Number of Poles per Deck | Number of Decks | Current Rating (Amps) | Angle of Throw | Depth Behind Panel [custom] | Index Stops | Voltage Rating - AC | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | DPDT | Flatted (3.17mm Dia) | Gold | 28 V | Non-Shorting (BBM) | 9.53 mm | Solder Lug | 2 | 2 | 250 mA | 30 ° | 31.19 mm | Fixed | 115 V | Panel Mount | Silver Alloy |
 Grayhill Inc. | 3P3T | Flatted (3.17mm Dia) | Gold | 28 V | Non-Shorting (BBM) | 9.53 mm | Solder Lug | 3 | 2 | 250 mA | 30 ° | 31.19 mm | Fixed | 115 V | Panel Mount | Silver Alloy |
