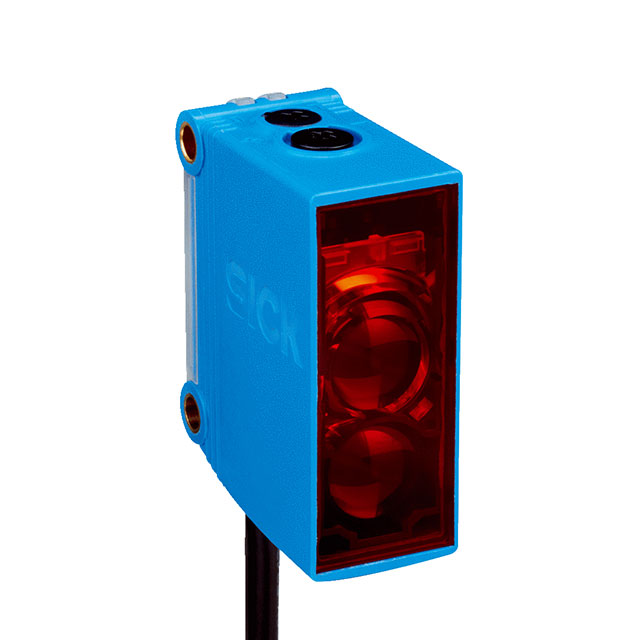

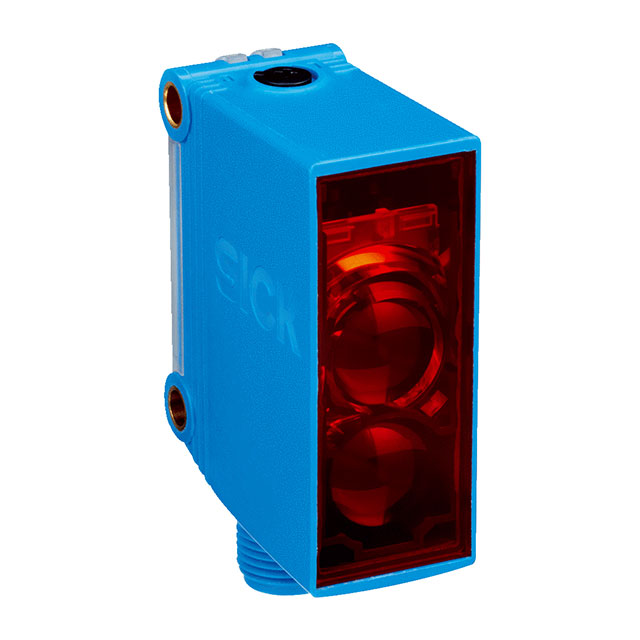

GTB10 Series

Catalog

SENSOR PROXIMITY 950MM NPN

Part	Cable Length	Cable Length	Adjustment Type	Sensing Distance [Max]	Sensing Distance	Sensing Distance [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Connection Method	Ingress Protection	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Light Source	Sensing Method	Sensing Distance [Min]	Sensing Distance [Max]
SICK, Inc. 1065859	78.74 "	2 m	5-Turn Potentiometer Adjustable	37.402 in	20 mm 950 mm	0.787 "	10 VDC	30 VDC	500 µs	Cable	IP67	NPN	60 °C	-30 °C	Red (625nm)	Proximity
SICK, Inc. 1065854	78.74 "	2 m	5-Turn Potentiometer Adjustable	37.402 in	20 mm 950 mm	0.787 "	10 VDC	30 VDC	500 µs	Cable	IP67	PNP	60 °C	-30 °C	Red (625nm)	Proximity
SICK, Inc. 1066852			Adjustable Potentiometer	37.402 in	20 mm 950 mm	0.787 "	10 VDC	30 VDC	1 ms	Connector M12	IP67	PNP	60 °C	-30 ░C	Red (625nm)	Proximity
SICK, Inc. 1065858	78.74 "	2 m	5-Turn Potentiometer Adjustable	37.402 in	20 mm 950 mm	0.787 "	10 VDC	30 VDC	500 µs	Cable	IP67	NPN	60 °C	-30 °C	Red (625nm)	Proximity
SICK, Inc. 1065856	78.74 "	2 m	5-Turn Potentiometer Adjustable	37.402 in	20 mm 950 mm	0.787 "	10 VDC	30 VDC	500 µs	Cable	IP67	PNP	60 °C	-30 °C	Red (625nm)	Proximity
SICK, Inc. 1064694			5-Turn Potentiometer Adjustable	37.402 in	20 mm 950 mm	0.787 "	10 VDC	30 VDC	500 µs	Connector M12 4POS	IP67	PNP - Dark-ON/Light-ON - Selectable	60 °C	-30 ░C	Red LED
SICK, Inc. 1065863	78.74 "	2 m	5-Turn Potentiometer Adjustable	47.244 in		0.787 "	24 V	240 VDC	10 ms	Cable	IP67	Dark-ON/Light-ON	60 °C	-30 °C	Infrared (880nm)	Proximity	20 mm	120 cm
