09370060 Series
Manufacturer: HARTING
Beta
⌘K
ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; HAN® M; IP65; WITH LATCH
| Part | Style | Housing Material | Connector Type | Lock Location | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Size | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Ingress Protection | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

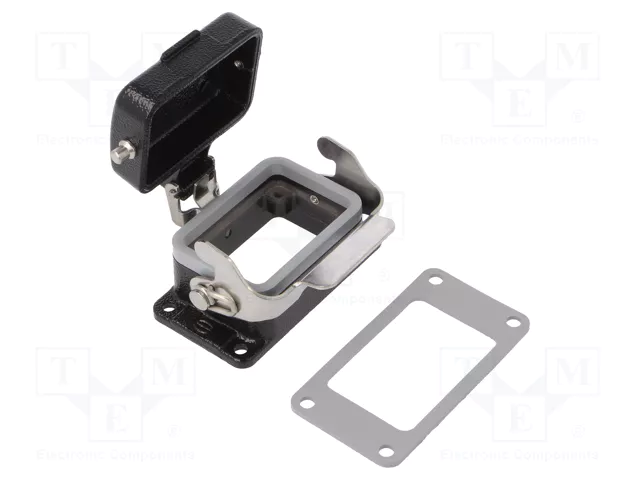

 HARTING | Bottom Entry | Aluminum Die Cast | Base - Panel Mount | Locking Clip (1) on Base Bottom | Black | 125 °C | -40 C | Powder Coated | 6B | Cover | 3.15 " | 80 mm | 1.165 in | 1.709 " | 43.4 mm | 29.6 mm | IP65 - Dust Tight Water Resistant | |

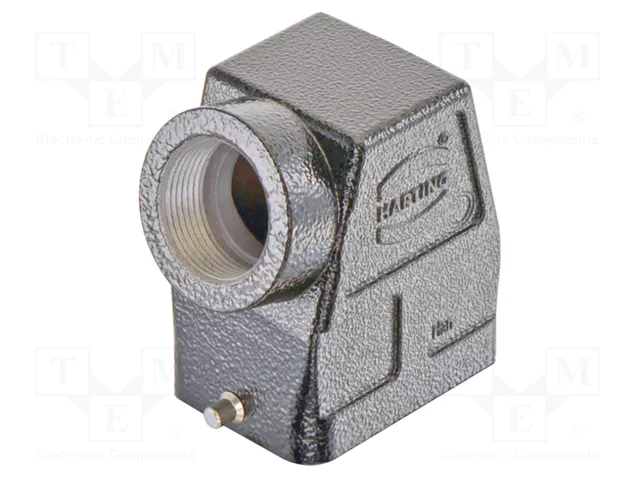

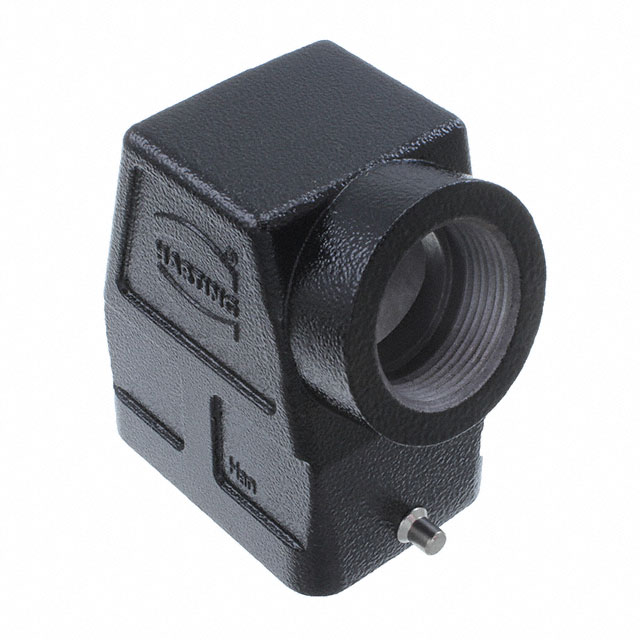

 HARTING | Side Entry | Aluminum Die Cast | Hood | Locking Clip (1) on Base Bottom | Black | 125 °C | -40 C | Powder Coated | 6B | 2.362 in | 60 mm | 2.953 " | 1.693 " | 43 mm | 75 mm | IP65 - Dust Tight Water Resistant | PG21 | |

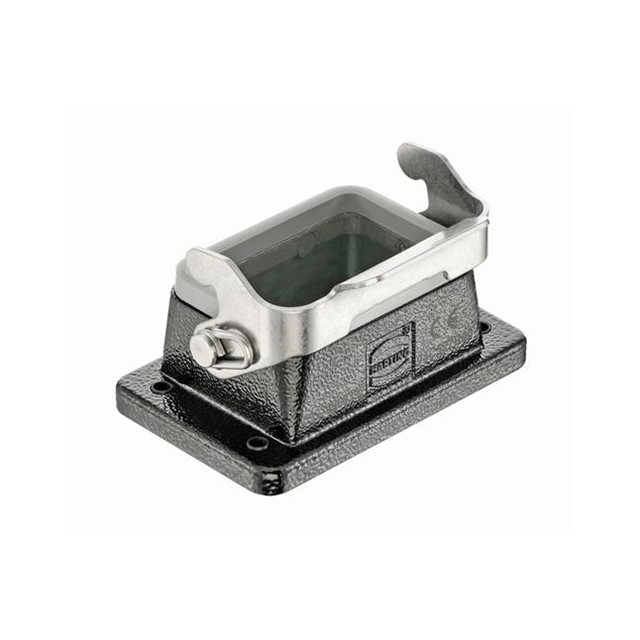

 HARTING | Bottom Entry | Aluminum Die Cast | Base - Panel Mount | Locking Clip (1) on Base Bottom | Black | 125 °C | -40 C | Powder Coated | 6B | 3.37 " 85.6 mm | 1.354 in 34.4 mm | 2.165 in 55 mm | IP66 - Dust Tight Water Resistant | |||||

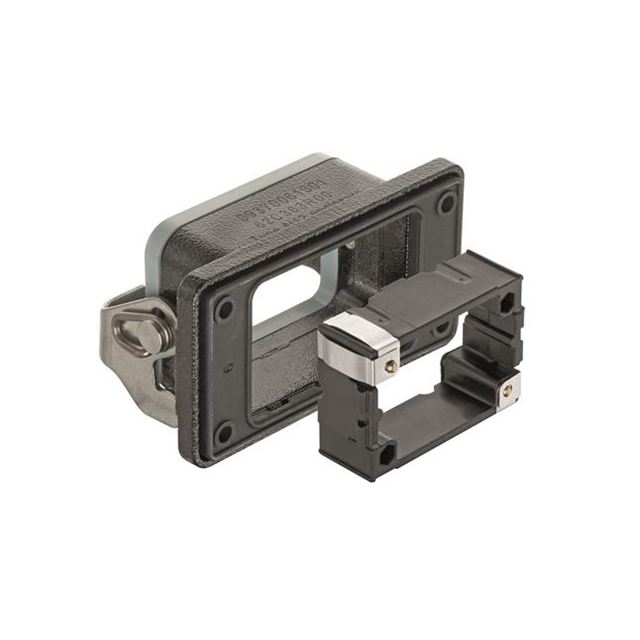

 HARTING | Bottom Entry | Aluminum Die Cast | Base - Panel Mount | Locking Clip (1) on Base Bottom | Black | 125 °C | -40 C | Powder Coated | 6B | 3.37 " 85.6 mm | 1.354 in 34.4 mm | 2.165 in 55 mm | IP66 - Dust Tight Water Resistant |
