337-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Termination	Color	Flange Feature	Mounting Type	Number of Rows [custom]	Number of Positions	Card Type	Gender	Pitch	Pitch	Read Out	Contact Type	Features	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]

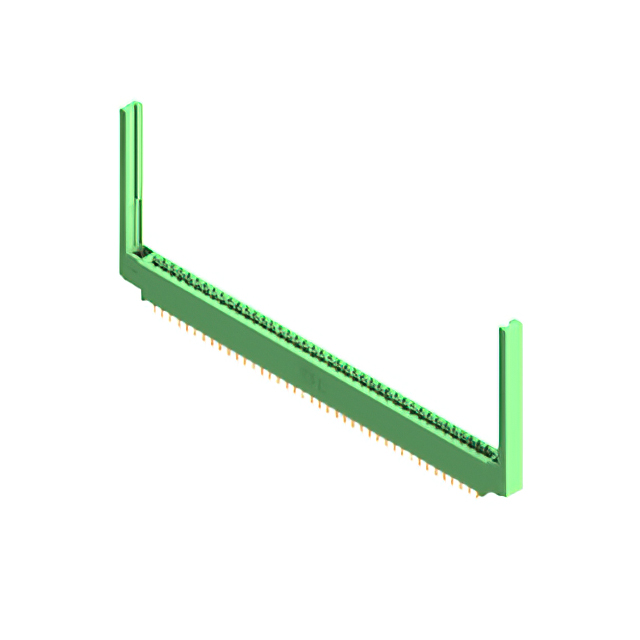

EDAC Inc. 337-080-540-868	Polyester Thermoplastic	2	-40 C	105 ░C	40	Wire Wrap	Green	4-40 Threaded Insert Top Mount Opening	Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever	Card Guides	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy
EDAC Inc. 337-080-521-808	Polyester Thermoplastic	2	-40 C	105 ░C	40	Solder	Green	4-40 Threaded Insert Top Mount Opening	Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy
EDAC Inc. 337-080-558-204	Polyester Thermoplastic	2	-40 C	105 ░C	40	Wire Wrap	Green	Flush Mount Top Opening Unthreaded	Right Angle Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	0.156 "	3.96 mm
EDAC Inc. 337-080-560-807	Polyester Thermoplastic	2	-40 C	105 ░C	40	Solder	Green	M3 Threaded Insert Top Mount Opening	Board Edge Straddle Mount	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever	Card Extender	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy
EDAC Inc. 337-080-558-807	Polyester Thermoplastic	2	-40 C	105 ░C	40	Wire Wrap	Green	M3 Threaded Insert Top Mount Opening	Right Angle Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy
EDAC Inc. 337-080-540-807	Polyester Thermoplastic	2	-40 C	105 ░C	40	Wire Wrap	Green	M3 Threaded Insert Top Mount Opening	Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy
EDAC Inc. 337-080-541-808	Polyester Thermoplastic	2	-40 C	105 ░C	40	Wire Wrap	Green	4-40 Threaded Insert Top Mount Opening	Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy
EDAC Inc. 337-080-556-878	Polyester Thermoplastic	2	-40 C	105 ░C	40	Solder	Green	4-40 Threaded Insert Top Mount Opening	Board Edge Straddle Mount	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever	Card Extender Card Guides	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy

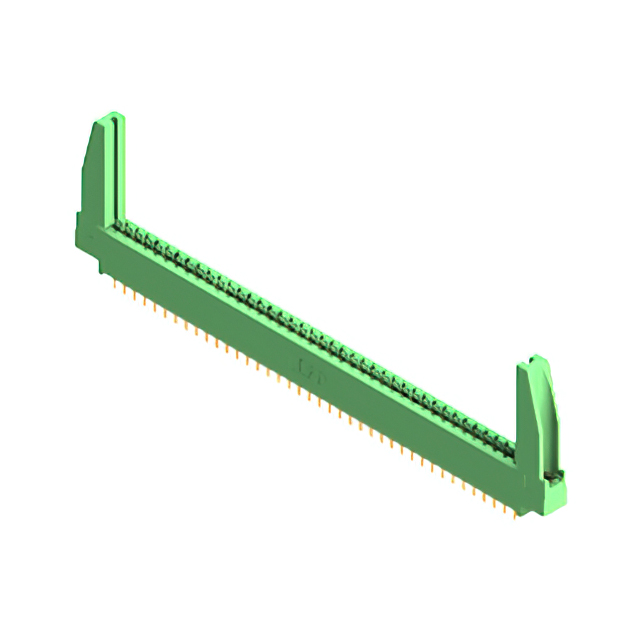

EDAC Inc. 337-080-520-878	Polyester Thermoplastic	2	-40 C	105 ░C	40	Solder	Green	4-40 Threaded Insert Top Mount Opening	Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy

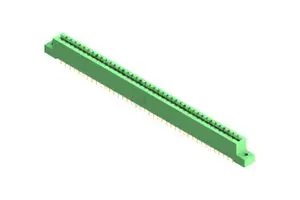

EDAC Inc. 337-080-524-202	Polyester Thermoplastic	2	-40 C	105 ░C	40	Solder	Green	Flush Mount Top Opening Unthreaded	Through Hole	2	80	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	Dual	Cantilever		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	0.128 "	3.25 mm
