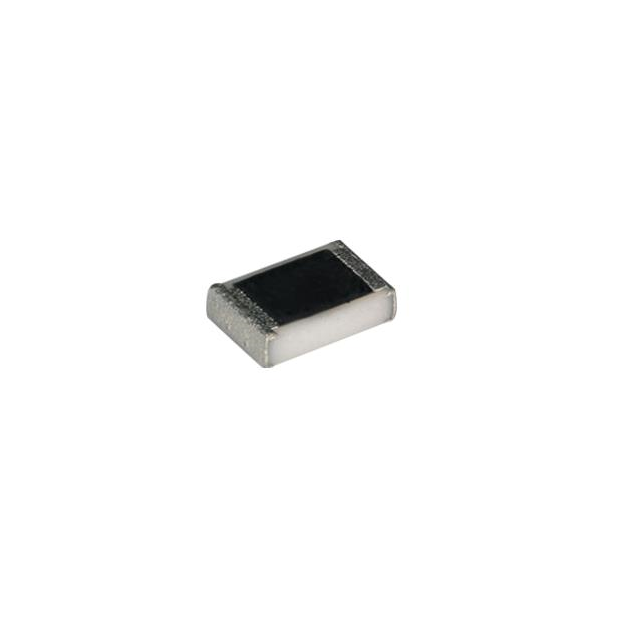

ERJ-HP Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES 52.3K OHM 1% 1/2W 0805
| Part | Temperature Coefficient | Package / Case | Power (Watts) | Power (Watts) | Resistance | Composition | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Supplier Device Package | Number of Terminations | Features | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 52.3 kOhms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 1 % | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 681 Ohms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 1 % | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
 Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 825 Ohms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm | |
Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 107 Ohms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm | |
Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 160 kOhms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 1 % | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 147 kOhms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm | |
Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 66.5 kOhms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm | |
 Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 39.2 Ohms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 1 % | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
Panasonic Industrial Automation Sales | 300 ppm/°C | 0805 | 0.5 W | 0.5 W | Thick Film | AEC-Q200 | -55 °C | 347 °F | 1 % | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm | |
Panasonic Industrial Automation Sales | 100 ppm/°C | 0805 | 0.5 W | 0.5 W | 7.32 kOhms | Thick Film | AEC-Q200 | -55 °C | 347 °F | 0805 | 2 | Automotive AEC-Q200 | 0.7 mm | 0.028 in | 2 mm | 0.079 in | 0.049 in | 1.25 mm |
