160467 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

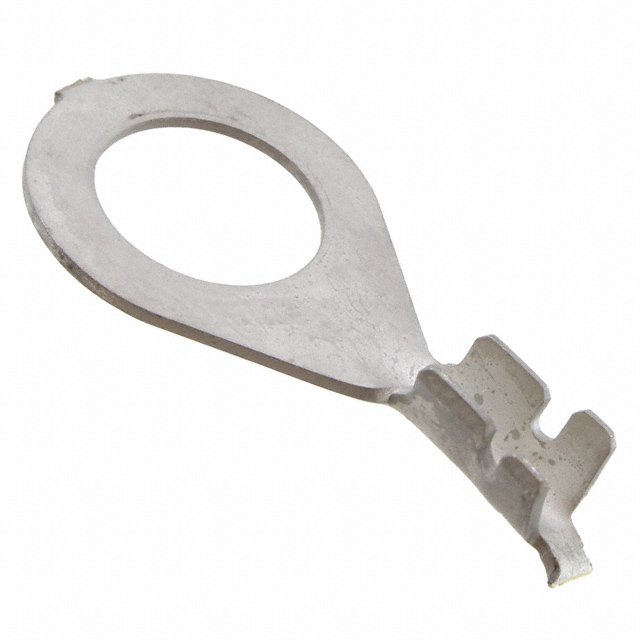

CONN RING CIRC 13.5-17AWG M10
| Part | Termination | Contact Material | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Stud/Tab Size | Mounting Type | Insulation | Thickness | Thickness | Terminal Type | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Brass | 3.81 mm | 2.5 mm | 0.098 in | 0.15 " | M10 Stud | Free Hanging (In-Line) | Non-Insulated | 0.031 in | 0.79 mm | Circular | 29.8 mm | 1.173 in | 14 AWG | 17 AWG |
