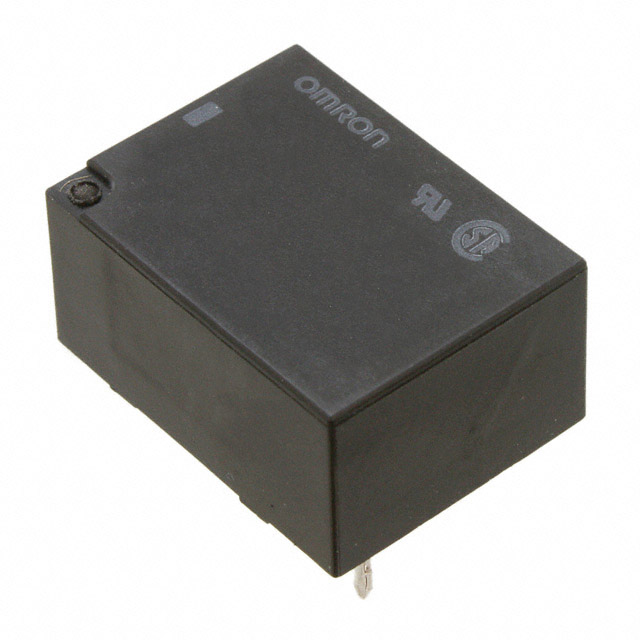

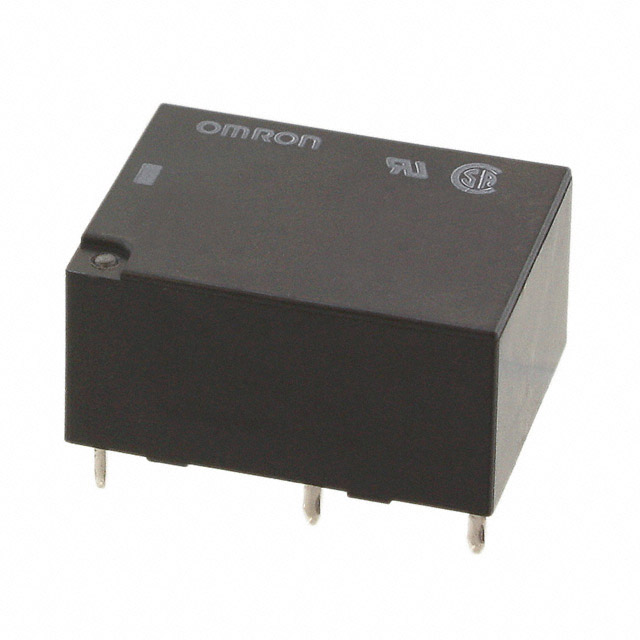

G6CU-111 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 5V
| Part | Seal Rating | Coil Resistance | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Coil Type | Approval Agency | Operate Time | Termination Style | Switching Voltage | Load - Max Switching | Contact Rating (Current) | Contact Form | Relay Type | Coil Voltage | Must Operate Voltage | Coil Current | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Sealed - Fully | 125 Ohms | Cadmium Free Silver Alloy | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 380 VAC | 1250 W 3800 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 5 VDC | 3.5 VDC | 40 mA | 10 ms |
 Omron Electronics Inc-EMC Div | Sealed - Flux Protection | 125 Ohms | Cadmium Free Silver Alloy | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 380 VAC | 1250 W 3800 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 5 VDC | 3.5 VDC | 40 mA | 10 ms |
Omron Electronics Inc-EMC Div | Sealed - Flux Protection | 45 Ohms | Silver Indium Tin (AgInSn) | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 250 VAC | 1250 W 2500 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 2.1 VDC | 67 mA | 10 ms | |
 Omron Electronics Inc-EMC Div | Sealed - Fully | 45 Ohms | Silver Indium Tin (AgInSn) | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 250 VAC | 1250 W 2500 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 2.1 VDC | 67 mA | 10 ms | |
Omron Electronics Inc-EMC Div | Sealed - Flux Protection | 2.88 kOhms | Cadmium Free Silver Alloy | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 380 VAC | 1250 W 3800 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 24 VDC | 16.8 VDC | 8.3 mA | 10 ms |
Omron Electronics Inc-EMC Div | Sealed - Fully | 2.88 kOhms | Cadmium Free Silver Alloy | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 380 VAC | 1250 W 3800 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 24 VDC | 16.8 VDC | 8.3 mA | 10 ms |
Omron Electronics Inc-EMC Div | Sealed - Fully | 125 Ohms | Silver Indium Tin (AgInSn) | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 250 VAC | 1250 W 2500 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 5 VDC | 3.5 VDC | 40 mA | 10 ms |
Omron Electronics Inc-EMC Div | Sealed - Fully | 45 Ohms | Cadmium Free Silver Alloy | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 380 VAC | 1250 W 3800 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 2.1 VDC | 67 mA | 10 ms | |
Omron Electronics Inc-EMC Div | Sealed - Flux Protection | 45 Ohms | Cadmium Free Silver Alloy | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 380 VAC | 1250 W 3800 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 2.1 VDC | 67 mA | 10 ms | |
 Omron Electronics Inc-EMC Div | Sealed - Fully | 180 Ohms | Cadmium Free Silver Alloy | 70 °C | -25 °C | Through Hole | Latching Single Coil | CSA TUV UR VDE | 10 ms | PC Pin | 125 VDC 380 VAC | 1250 W 3800 VA | 10 A | SPST-NO (1 Form A) | General Purpose | 12 VDC | 8.4 VDC | 16.7 mA | 10 ms |
