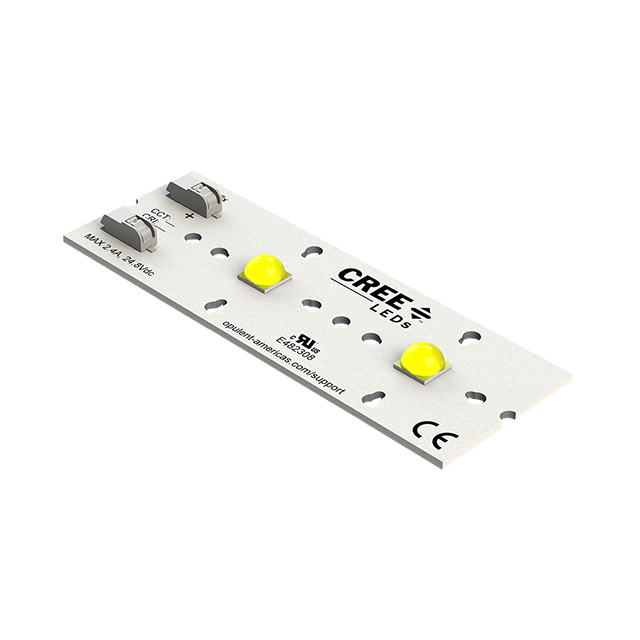

LPH1-02C24 Series

Catalog

LED MOD XHP70.2 WH LNR STR 3000K

Part	Current - Max	Lens Type	Current - Test	Configuration	Type	CRI (Color Rendering Index)	Color	Temperature - Test	Voltage - Forward (Vf) (Typ)	Luminous Flux (Typical)	Size / Dimension Width	Size / Dimension Length	CCT (K)	CCT Description	Lumens/Watt
New Energy LPH1-02C24-3080-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	80	Warm White	85 °C	22.4 V	3420 lm	32.99 mm	93.98 mm	3000 K	5-Step MacAdam Ellipse	145 lm/W
New Energy LPH1-02C24-2780-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	80	Warm White	85 °C	22.4 V	2970 lm	32.99 mm	93.98 mm	2700 K	3-Step MacAdam Ellipse	126 lm/W
New Energy LPH1-02C24-4070-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	70	Neutral White	85 °C	22.4 V	3660 lm	32.99 mm	93.98 mm	4000 K	5-Step MacAdam Ellipse	156 lm/W
New Energy LPH1-02C24-5770-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	70	Cool White	85 °C	22.4 V	3660 lm	32.99 mm	93.98 mm	5700 K		156 lm/W
New Energy LPH1-02C24-3070-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	70	Warm White	85 °C	22.4 V	3420 lm	32.99 mm	93.98 mm	3000 K	5-Step MacAdam Ellipse	145 lm/W
New Energy LPH1-02C24-2790-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	90	Warm White	85 °C	22.4 V	2970 lm	32.99 mm	93.98 mm	2700 K	3-Step MacAdam Ellipse	126 lm/W
New Energy LPH1-02C24-5070-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	70	Cool White	85 °C	22.4 V	3660 lm	32.99 mm	93.98 mm	5000 K	5-Step MacAdam Ellipse	156 lm/W
New Energy LPH1-02C24-5080-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	80	Cool White	85 °C	22.4 V	3660 lm	32.99 mm	93.98 mm	5000 K	5-Step MacAdam Ellipse	156 lm/W
New Energy LPH1-02C24-4080-00	2.4 A	Domed	1.05 A	Linear Light Strip	LED Module	80	Neutral White	85 °C	22.4 V	3660 lm	32.99 mm	93.98 mm	4000 K	5-Step MacAdam Ellipse	156 lm/W
New Energy LPH1-02C24-5780-00
