19360101 Series
Manufacturer: HARTING
Beta
⌘K
HAN B SIDE ENTRY LC M25 EXI_FOR
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Thread Size | Housing Material | Size | Ingress Protection | Connector Type | Housing Finish | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Lock Location | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

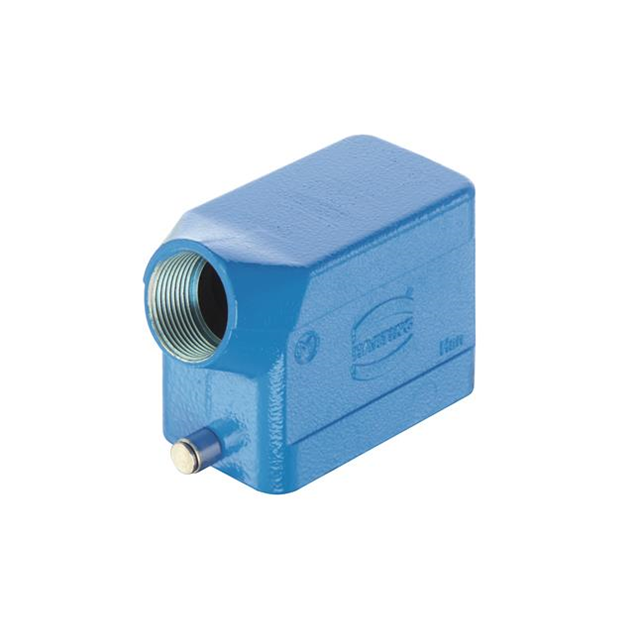

 HARTING | 43 mm | 72.6 mm | 57 mm | 2.858 in | 2.244 " | 1.693 " | M25 | Zinc Die Cast | 10B | IP65 - Dust Tight Water Resistant | Hood | Powder Coated | -20 ░C | 40 °C | Blue | Locking Clip (1) on Base Bottom | Side Entry |

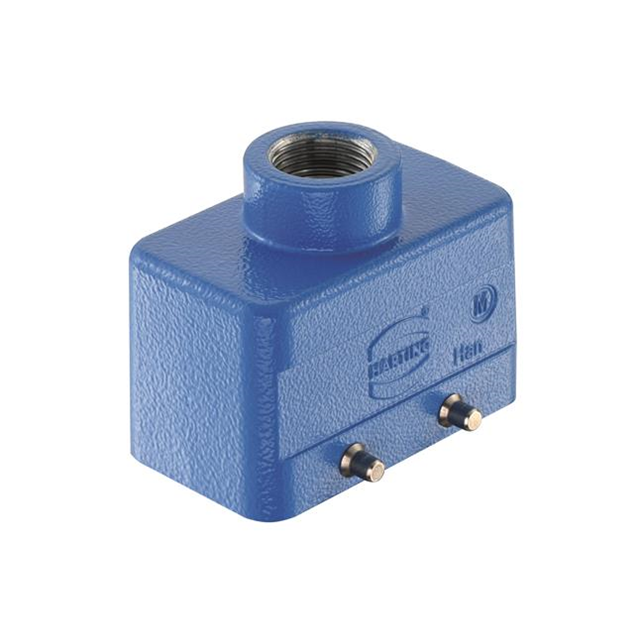

 HARTING | 43 mm | 72.6 mm | 45 mm | 2.858 in | 1.772 in | 1.693 " | M25 | Zinc Die Cast | 10B | IP65 - Dust Tight Water Resistant | Hood | Powder Coated | -20 ░C | 40 °C | Blue | Locking Clip (2) on Base Bottom | Top Entry |

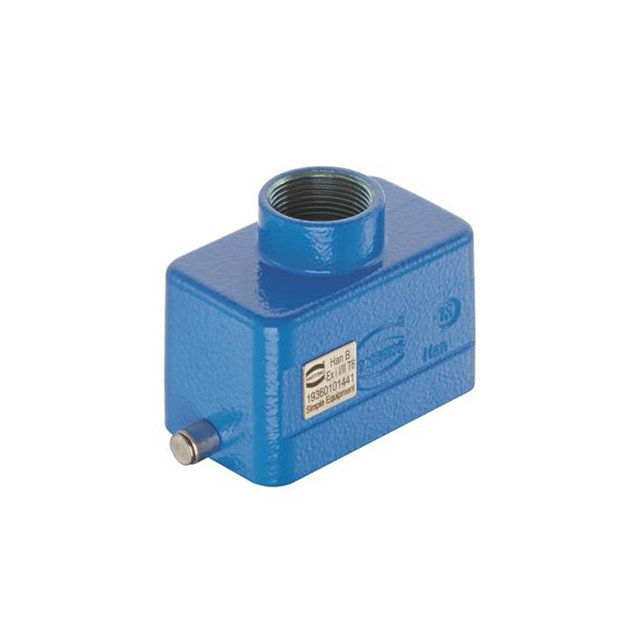

 HARTING | 43 mm | 72.6 mm | 45 mm | 2.858 in | 1.772 in | 1.693 " | M25 | Zinc Die Cast | 10B | IP65 - Dust Tight Water Resistant | Hood | Powder Coated | -20 ░C | 40 °C | Blue | Locking Clip (1) on Base Bottom | Top Entry |
 HARTING | M25 | Zinc Die Cast | 10B | IP65 - Dust Tight Water Resistant | Hood | Powder Coated | -20 ░C | 40 °C | Blue | Locking Clip (2) on Base Bottom | Side Entry | ||||||
HARTING | M20 | Zinc Die Cast | 10B | IP65 - Dust Tight Water Resistant | Hood | Powder Coated | -20 ░C | 40 °C | Blue | Locking Clip (2) on Base Bottom | Side Entry |
