7430W Series
Manufacturer: Belden Inc.
Beta
⌘K

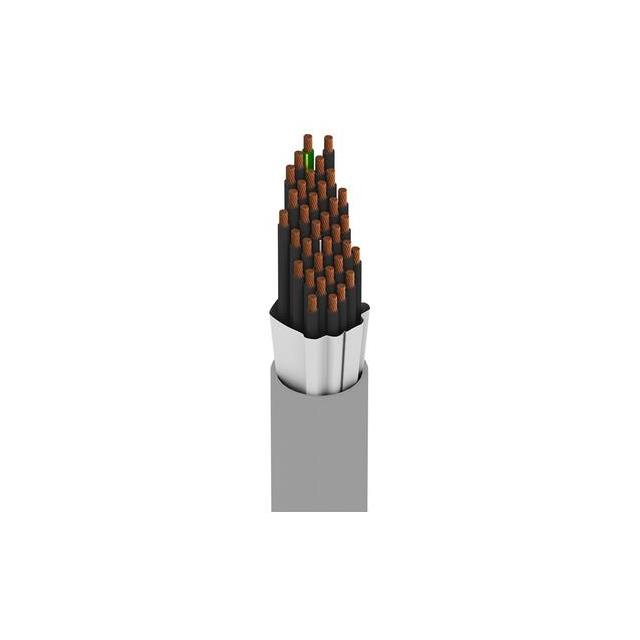

CABLE 34COND 16AWG CHROME
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Ratings | Wire Gauge | Conductor Insulation | Conductor Insulation | Conductor Insulation | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.085 in | 2.159 mm | Thermoplastic Elastomer (TPE) | 90 °C | -40 C | Oil Resistant UV Resistant | Chrome | 30 AWG | 26 | Multi-Conductor | UL Style 20328 | 16 AWG | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Copper Bare | 22.4 mm | 0.882 " | 34 | 304.8 m | 1000 ft |
Belden Inc. | 0.085 in | 2.159 mm | Thermoplastic Elastomer (TPE) | 90 °C | -40 C | Oil Resistant UV Resistant | Chrome | 30 AWG | 26 | Multi-Conductor | UL Style 20328 | 16 AWG | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Copper Bare | 22.4 mm | 0.882 " | 34 | 76.2 m | 250 ft |
