2170330 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

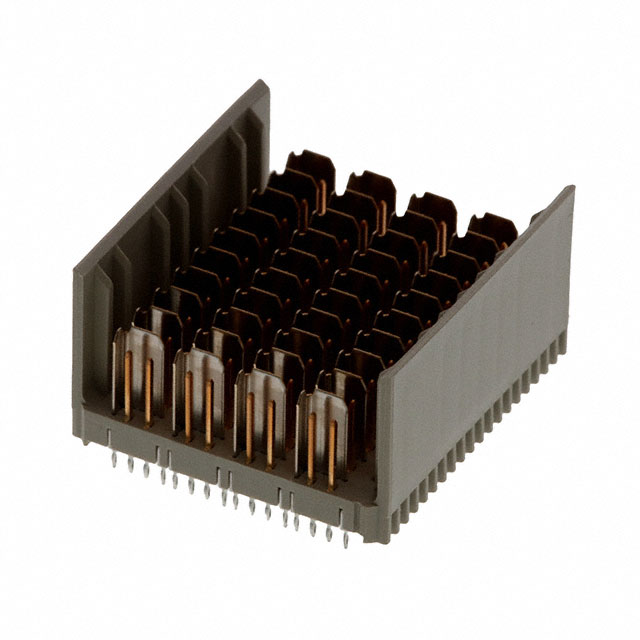

CONN HEADER 80POS PCB
| Part | Current Rating (Amps) | Number of Columns | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Termination | Number of Positions Loaded | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.7 A | 10 | 8 | 0.098 in | 2.5 mm | Gold | Header Male Pins | 0.76 Ám | 30 Áin | 80 | Press-Fit | All | 250 VDC | -65 ░C | 105 ░C | Through Hole | UL94 V-0 |
