MS0850502 Series
Manufacturer: E-Switch
Beta
⌘K

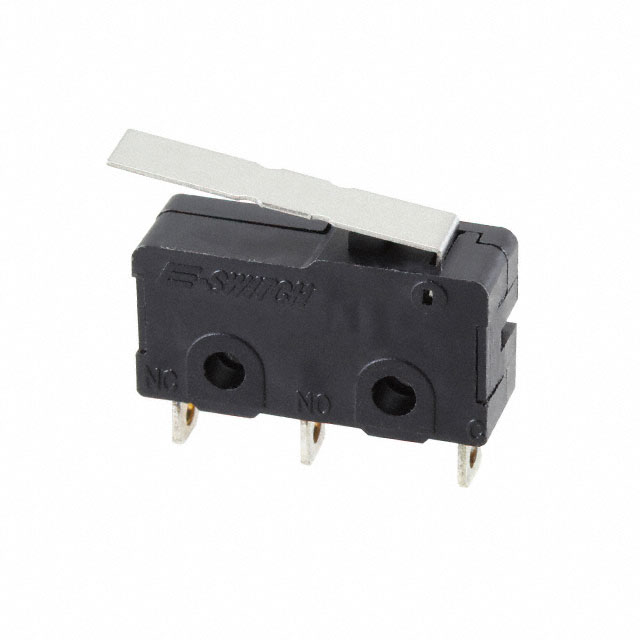

SWITCH SNAP ACTION SPDT 5A 125V
| Part | Actuator Type | Electrical Life | Pretravel | Pretravel | Mechanical Life | Circuit | Release Force | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Operating Position | Operating Position | Voltage Rating - AC | Termination Style | Switch Function | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Lever Straight | 50000 Cycles | 0.15 in | 3.8 mm | 1000000 Cycles | SPDT | 12 gf | 85 °C | -25 °C | Chassis Mount | 5 A | 9.1 mm | 0.358 in | 125 V | Solder Lug | On-Mom | |
 E-Switch | Lever Straight | 50000 Cycles | 0.15 in | 3.8 mm | 1000000 Cycles | SPDT | 25 gf | 85 °C | -25 °C | Chassis Mount | 5 A | 9.1 mm | 0.358 in | 125 V | Solder Lug | On-Mom | 75 gf |
E-Switch | Lever Straight | 50000 Cycles | 0.15 in | 3.8 mm | 1000000 Cycles | SPDT | 20 gf | 85 °C | -25 °C | Right Angle Through Hole | 5 A | 9.1 mm | 0.358 in | 125 V | PC Pin | On-Mom |
