SHR-C Series
Manufacturer: Essentra Components
Beta
⌘K
FASTENER, PUSH MOUNT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 22 MM, 30 MM
| Part | Screw Size | Length | Length | Color | Mounting Type | Material | Width [x] | Width [x] | Height [z] | Height [z] | Material Flammability Rating | Opening Size [Min] | Opening Size [Max] | Opening Size [Min] | Opening Size [Max] | Type | Type Attributes | Adhesive | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Hole Size | Panel Hole Size | Panel Hole Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

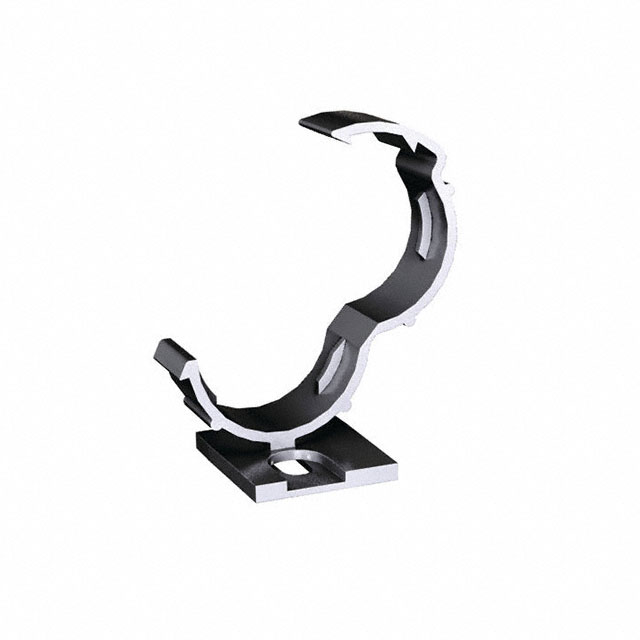

 Essentra Components | #8 (M4) | 29.97 mm | 1.18 in | Black | Fastener | Polyamide (PA66) Nylon 6/6 | 25.4 mm | 1 in | 32.51 mm | 1.28 in | UL94 V-2 | 19.99 mm | 0.984 " | 0.787 in | 24.99 mm | Clip C-Type | Hinged Locking | ||||||||

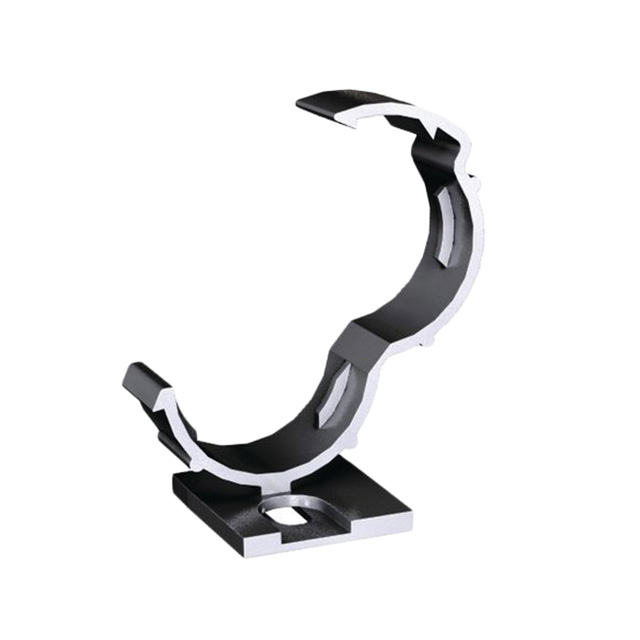

 Essentra Components | #8 (M4) | 29.97 mm | 1.18 in | Black | Adhesive Fastener | Polyamide (PA66) Nylon 6/6 | 25.4 mm | 1 in | 32.51 mm | 1.28 in | UL94 V-2 | 19.99 mm | 0.984 " | 0.787 in | 24.99 mm | Clip C-Type | Hinged Locking | Rubber Based (RMS-375) | |||||||

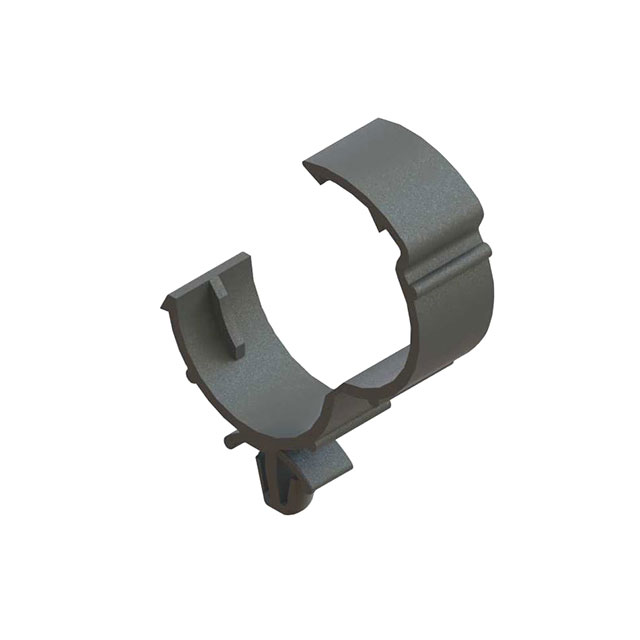

 Essentra Components | 29.97 mm | 1.18 in | Black | Arrowhead | Polyamide (PA66) Nylon 6/6 | 12.44 mm | 0.49 in | UL94 V-2 | 19.99 mm | 0.984 " | 0.787 in | 24.99 mm | Clip C-Type | Hinged Locking | 0.79 mm | 0.079 " | 0.031 " | 2 mm | 0.374 in 9.5 mm | Square | |||||
 Essentra Components | 28.96 mm | 1.14 in | Black | Arrowhead Winged | Polyamide (PA66) Nylon 6/6 | 12.44 mm | 0.49 in | 35.81 mm | 1.41 " | UL94 V-2 | 19.99 mm | 0.984 " | 0.787 in | 24.99 mm | Clip C-Type | Hinged Locking | 0.79 mm | 0.079 " | 0.031 " | 2 mm | 6.4 mm | 0.252 in |
