54101 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

...

Part	Number of Positions	Contact Finish - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Shrouding	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Number of Positions Loaded	Mounting Type	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Number of Positions	Contact Length - Post	Number of Positions Loaded [custom]
Amphenol ICC (FCI) 54101-G0504LF	40	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.23 in	5.84 mm	Male Pin	30 Áin	0.76 Ám	2.54 µm	100 µin	2.41 mm	0.095 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder

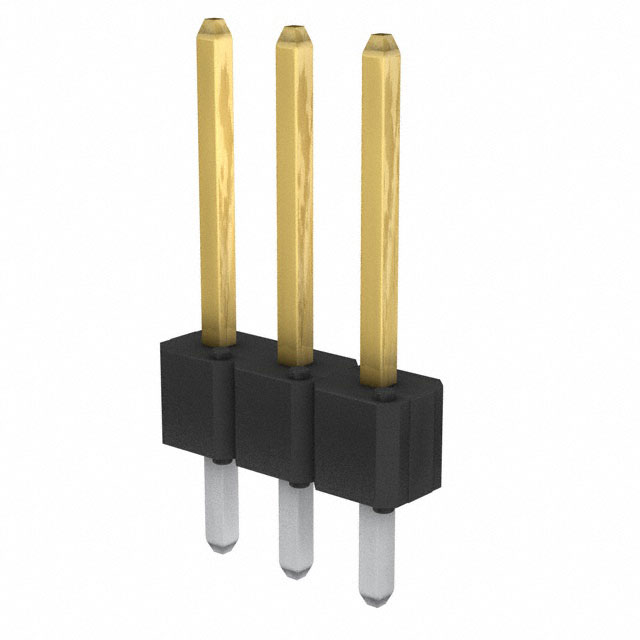

Amphenol ICC (FCI) 54101-G3003LF		Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.318 "		Male Pin	30 Áin	0.76 Ám	2.54 µm	100 µin	3.05 mm	0.12 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder	8.08 mm	0.538 "	13.67 mm

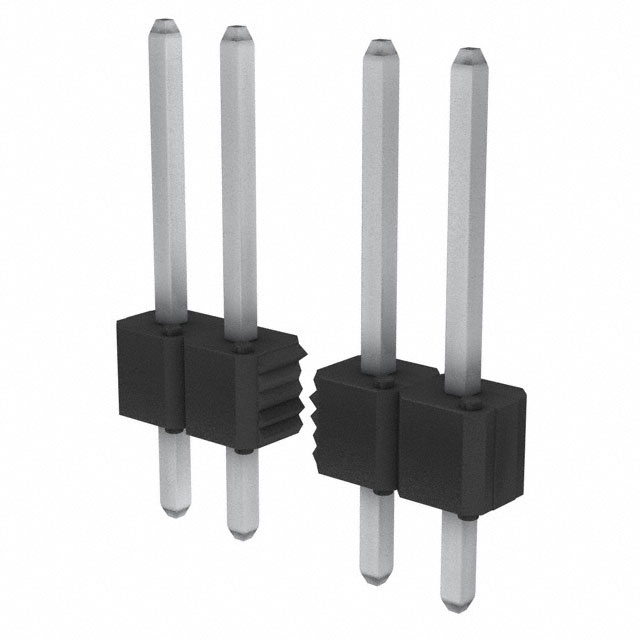

Amphenol ICC (FCI) 54101-T30-06	6		Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded		0.318 "		Male Pin	100 çin	2.54 çm			3.05 mm	0.12 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder	8.08 mm	0.538 "	13.67 mm

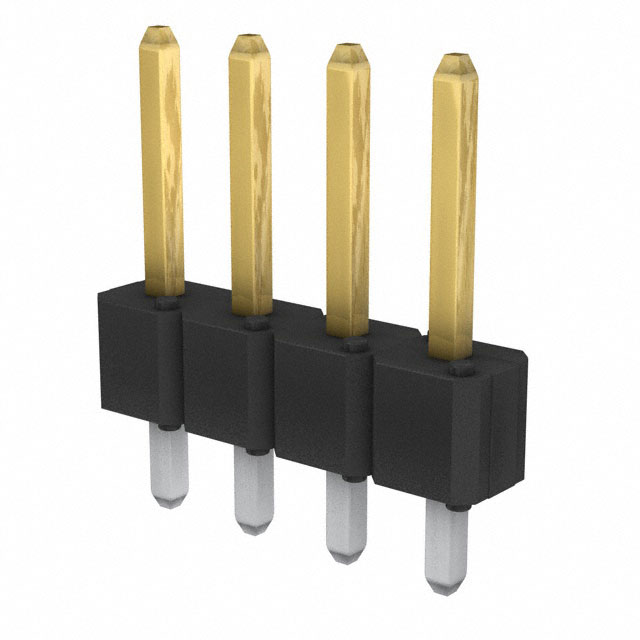

Amphenol ICC (FCI) 54101-S0505A02LF		Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.23 in	5.84 mm	Male Pin	15 µin	0.38 µm	2.54 µm	100 µin	2.41 mm	0.095 in	1		Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder				4
Amphenol ICC (FCI) 54101-T0805LF			Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.23 in	5.84 mm	Male Pin	100 çin	2.54 çm	2.54 µm	100 µin	3.05 mm	0.12 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder		0.45 "	11.43 mm

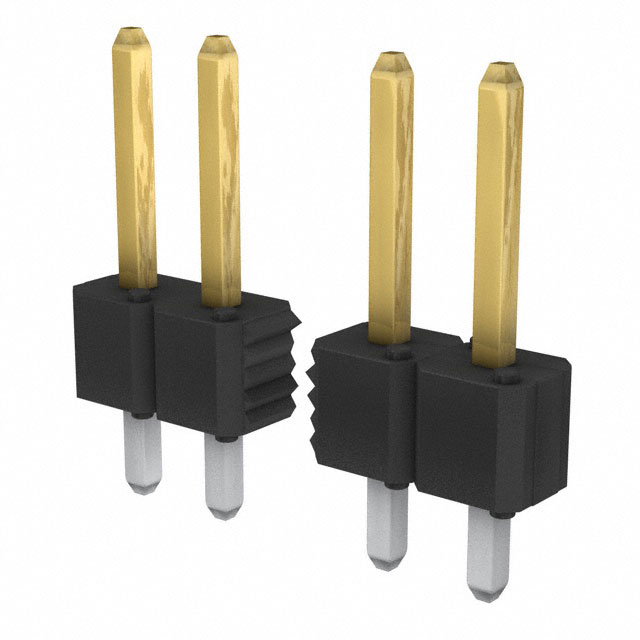

Amphenol ICC (FCI) 54101-S05-00		Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded		0.23 in	5.84 mm	Male Pin	15 µin	0.38 µm			2.41 mm	0.095 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder					Cuttable

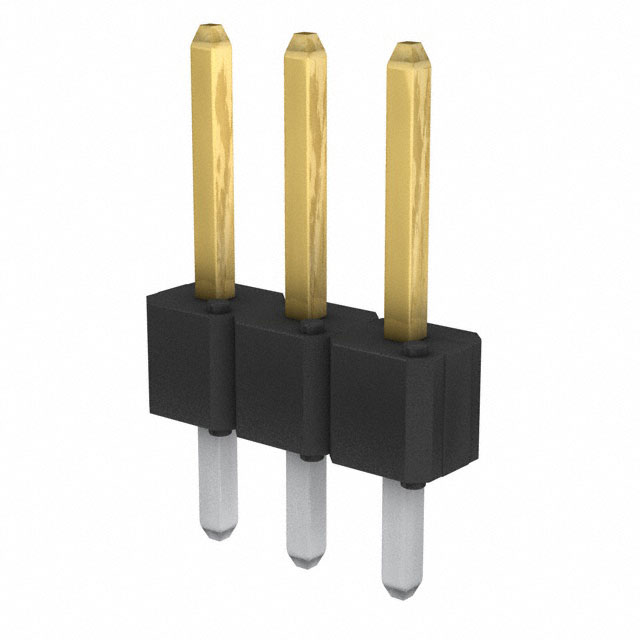

Amphenol ICC (FCI) 54101-S0803LF		Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.23 in	5.84 mm	Male Pin	15 µin	0.38 µm	2.54 µm	100 µin	3.05 mm	0.12 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder		0.45 "	11.43 mm
Amphenol ICC (FCI) 54101-S0630LF	30	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.23 in	5.84 mm	Male Pin	15 µin	0.38 µm	2.54 µm	100 µin		0.11 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder		0.44 in	11.18 mm			2.79 mm

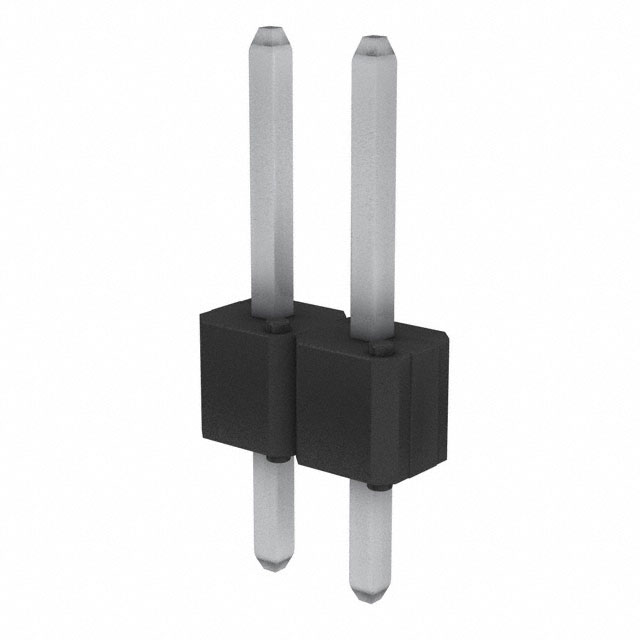

Amphenol ICC (FCI) 54101-T0802LF	2		Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.23 in	5.84 mm	Male Pin	100 çin	2.54 çm	2.54 µm	100 µin	3.05 mm	0.12 in	1	All	Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder		0.45 "	11.43 mm
Amphenol ICC (FCI) 54101-G05-06-A02LF	6	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	Header	Square	Unshrouded	Tin	0.23 in	5.84 mm	Male Pin	30 Áin	0.76 Ám	2.54 µm	100 µin	2.41 mm	0.095 in	1		Through Hole	Black	UL94 V-0	0.1 in	2.54 mm	3 A	125 °C	-65 ░C	Phosphor Bronze	Solder							5
