5435-0 Series

Catalog

CONN PC PIN CIRC 0.018DIA GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Insulation	Length - Overall [x]	Length - Overall [x]	Terminal Type	Terminal Style	Length - Above Flange [x]	Length - Above Flange [x]	Contact Finish	Contact Material

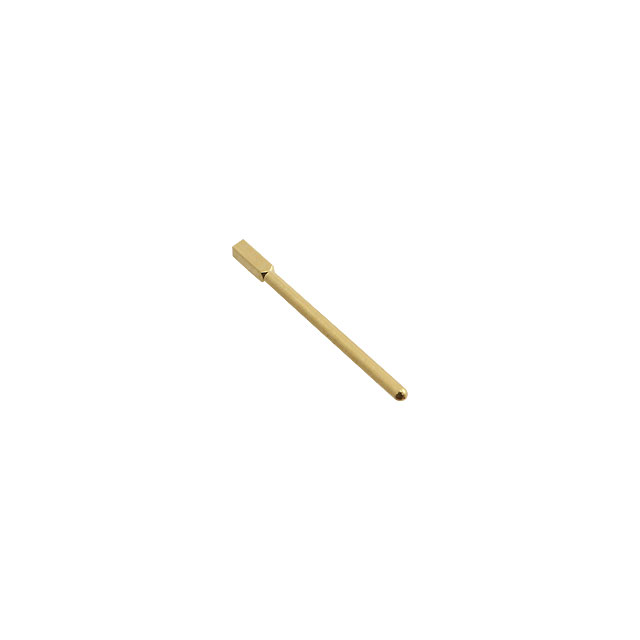

Mill-Max Manufacturing Corp. 5435-0-05-15-00-00-03-0	0.25 Ám	10 Áin	0.018 in	0.46 mm	Press-Fit Square	0.56 mm	0.022 in	Through Hole	Non-Insulated	0.303 in	7.7 mm	PC Pin	Single End	0.243 in	6.17 mm	Gold	Brass Alloy
Mill-Max Manufacturing Corp. 5435-0-05-80-00-00-03-0	5.08 Ám	200 Áin	0.018 in	0.46 mm	Press-Fit Square Wire Wrap	0.56 mm	0.022 in	Through Hole	Non-Insulated	0.303 in	7.7 mm	PC Pin	Single End	0.243 in	6.17 mm	Tin	Brass Alloy
Mill-Max Manufacturing Corp. 5435-0-05-21-00-00-03-0	0.51 µm	20 µin	0.018 in	0.46 mm	Press-Fit Square	0.56 mm	0.022 in	Through Hole	Non-Insulated	0.303 in	7.7 mm	PC Pin	Single End	0.243 in	6.17 mm	Gold	Brass Alloy
