203555 Series

CP-6.5 Header, 6.50mm Pitch, Dual Row, Right-Angle, Polarized, Through Hole, Tube Packaging, 2 Circuits, Red

Manufacturer: Molex

Catalog

CP-6.5 Header, 6.50mm Pitch, Dual Row, Right-Angle, Polarized, Through Hole, Tube Packaging, 2 Circuits, Red

Part	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Material	Fastening Type	Contact Type	Number of Rows	Shrouding	Voltage Rating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Color	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions	Features	Contact Material	Connector Type	Material Flammability Rating	Contact Shape	Current Rating (Amps)	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Applications
Molex 2035552014	-40 °C	105 ░C	6.5 mm	0.256 in	4	Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Blue	Surface Mount Right Angle	Tin	6.5 mm	0.256 in	15.29 mm	0.602 in	Varies by Wire Gauge	4	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular
Molex 2035551116	-40 °C	105 ░C				Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Black	Through Hole Right Angle	Tin	6.5 mm	0.256 in	15.19 mm	0.598 "		6	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular	11.8 A	All	0.15 in	3.81 mm
Molex 2035552214	-40 °C	105 ░C	6.5 mm	0.256 in	4	Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Natural	Surface Mount Right Angle	Tin	6.5 mm	0.256 in	15.29 mm	0.602 in	Varies by Wire Gauge	4	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular

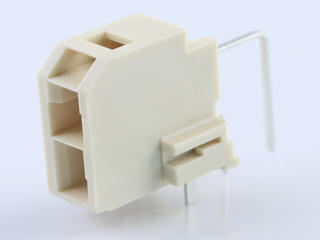

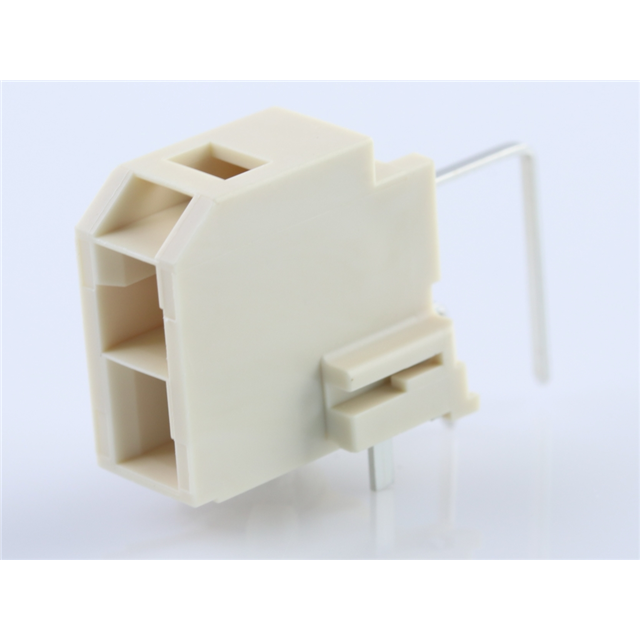

Molex 2035551312	-40 °C	105 ░C	6.5 mm	0.256 in		Nylon Polyamide (PA)	Latch Holder	Tab	2	Shrouded - 4 Wall	600 VAC	Solder					Board to Cable/Wire	Natural	Through Hole Right Angle	Tin			15.19 mm	0.598 "	Varies by Wire Gauge	2	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular		All	0.15 in	3.81 mm	General Purpose Industrial

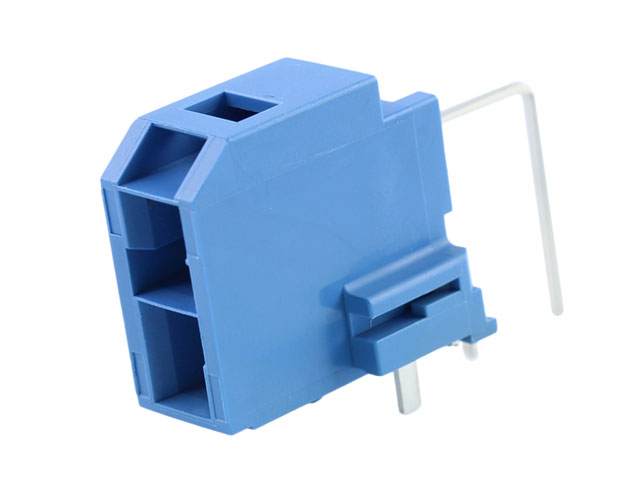

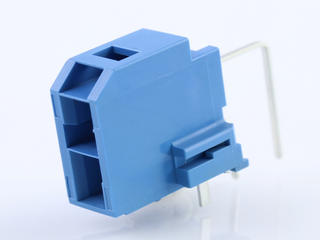

Molex 2035551112	-40 °C	105 ░C				Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Blue	Through Hole Right Angle	Tin			15.19 mm	0.598 "		2	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular	11.8 A	All	0.15 in	3.81 mm

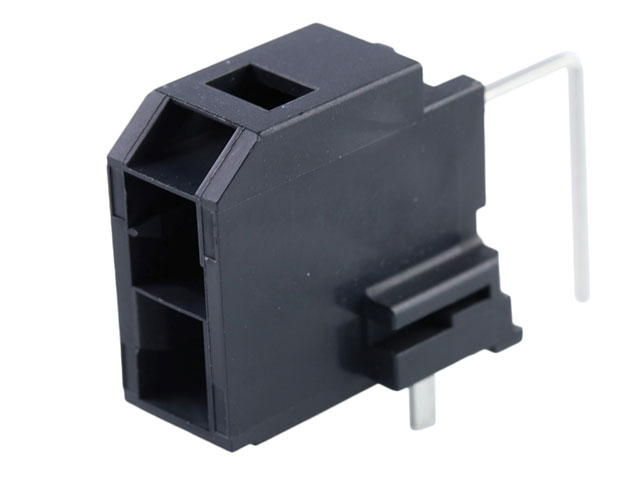

Molex 2035551222	-40 °C	105 ░C				Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Black	Through Hole Right Angle	Tin			15.19 mm	0.598 "		2	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular	11.8 A	All	0.15 in	3.81 mm
Molex 2035552222	-40 °C	105 ░C	6.5 mm	0.256 in	2	Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Black	Surface Mount Right Angle	Tin			15.29 mm	0.602 in	Varies by Wire Gauge	2	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular
Molex 2035552112	-40 °C	105 ░C	6.5 mm	0.256 in	2	Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Blue	Surface Mount Right Angle	Tin			15.29 mm	0.602 in	Varies by Wire Gauge	2	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular
Molex 2035552114	-40 °C	105 ░C	6.5 mm	0.256 in	4	Nylon Polyamide (PA)	Latch Holder	Male Pin	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Black	Surface Mount Right Angle	Tin	6.5 mm	0.256 in	15.29 mm	0.602 in	Varies by Wire Gauge	4	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular

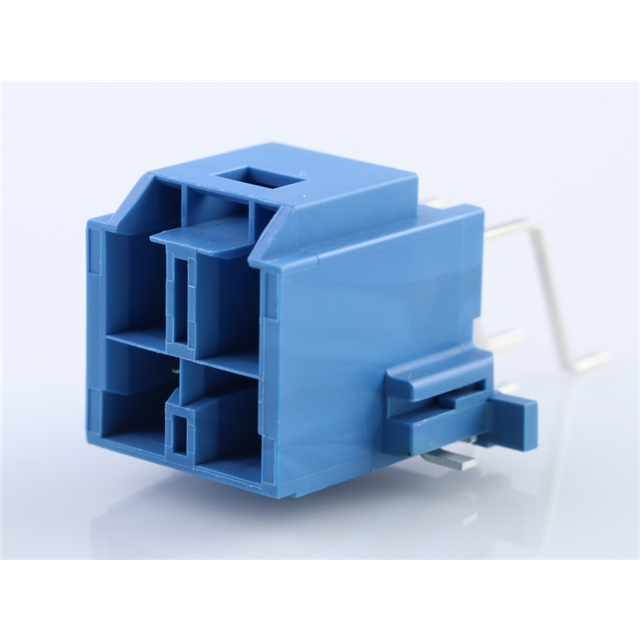

Molex 2035552024	-40 °C	105 ░C	6.5 mm	0.256 in		Nylon Polyamide (PA)	Latch Holder	Tab	2	Shrouded - 4 Wall	600 VAC	Solder	1.27 µm	50 µin	1.27 µm	50 µin	Board to Cable/Wire	Blue Red	Surface Mount Right Angle	Tin	6.5 mm	0.256 in	15.29 mm	0.602 in	Varies by Wire Gauge	4	Board Guide Solder Retention	Copper Alloy	Header	UL94 V-0	Rectangular		All			General Purpose Industrial
