568-001 Series
Manufacturer: EDAC Inc.
Beta
⌘K

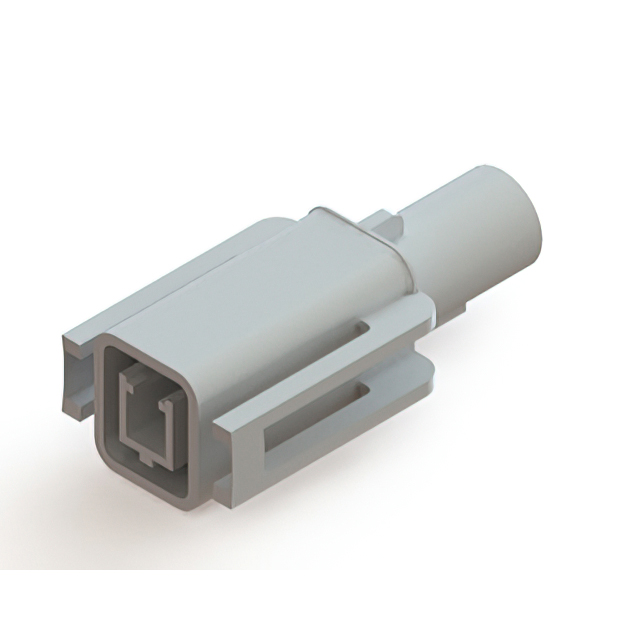

CONNECTOR HOUSING, WATERPROOF, 568 SERIES, PLUG, 1 POSITIONS, 570 SERIES PIN CRIMP CONTACTS
| Part | Note | Contact Type | Fastening Type | Insulation Material | Connector Type | Features | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Number of Rows | Mounting Type | Length | Length | Length | Contact Finish | Shielding | Color | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Contacts Not Included | Male Pin | Latch Lock | Polybutylene Terephthalate (PBT) | Plug | Waterproof | 1 | -40 C | 105 ░C | Crimp | 1 | Free Hanging (In-Line) | |||||||
 EDAC Inc. | Contacts Not Included | Female Socket | Latch Holder | Polybutylene Terephthalate (PBT) | Receptacle | Waterproof | 1 | -40 C | 105 ░C | Crimp | 1 | Free Hanging (In-Line) | |||||||

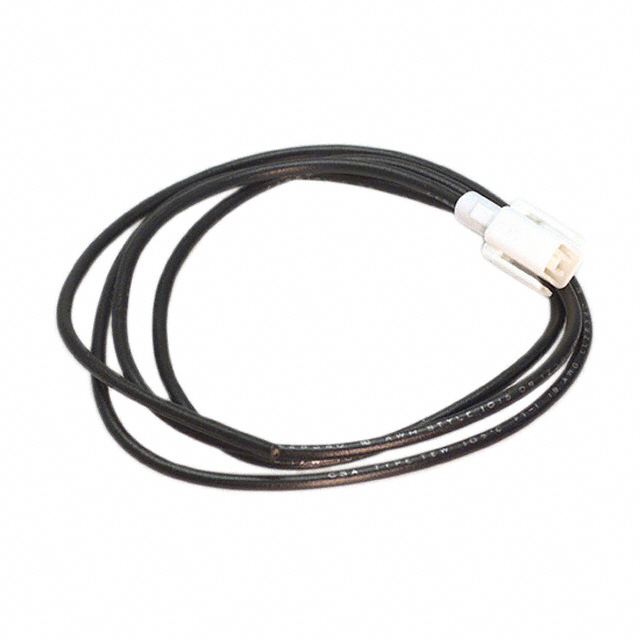

 EDAC Inc. | Socket to Cable | Waterproof | 1 | 1 | 7.87 " | 0.656 ' | 200 mm | Tin | Unshielded | Black Individual | Crimp |
