PPTC161 Series

Catalog

CONN HDR 16POS 0.1 TIN PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Number of Rows	Contact Finish - Post	Mounting Type	Fastening Type	Insulation Color	Termination	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Voltage Rating	Number of Positions Loaded	Number of Positions	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPTC161LGBN-RC	Phosphor Bronze	Square	Polyester	1	Tin	Right Angle Through Hole	Push-Pull	Black	Solder	Female Socket	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	250 V	All	16	Header	UL94 V-0	-40 C	105 ░C	0.124 in	3.15 mm
Sullins Connector Solutions PPTC161KFXC	Phosphor Bronze	Square	Polyester	1	Tin	Surface Mount	Push-Pull	Black	Solder	Female Socket	3 A	0.1 "	2.54 mm	0.28 in	7.1 mm	250 V	All	16	Header Top or Bottom Entry	UL94 V-0	-40 C	105 ░C

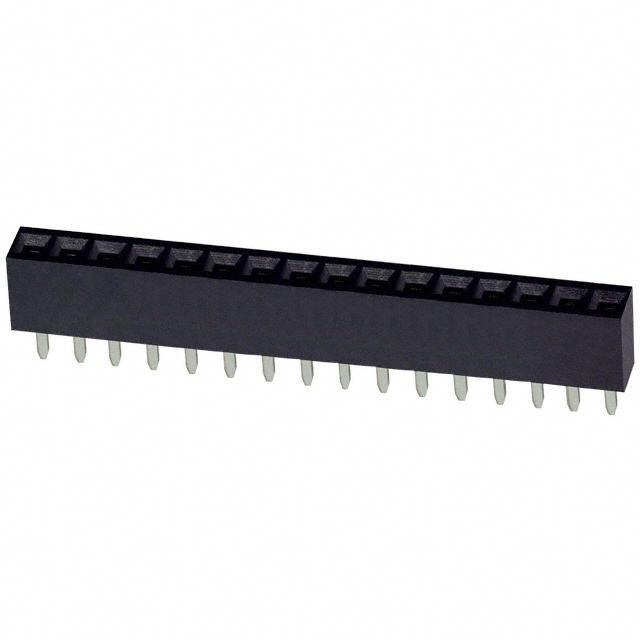

Sullins Connector Solutions PPTC161LFBN-RC	Phosphor Bronze	Square	Polyester	1	Tin	Through Hole	Push-Pull	Black	Solder	Female Socket	3 A	0.1 "	2.54 mm	0.335 "	8.51 mm	250 V	All	16	Header	UL94 V-0	-40 C	105 ░C			0.126 "	3.2 mm
