CWSAC Series

Catalog

SAC305 NCCW2 .032 1# SPL

Part	Weight	Ag Composition	Composition Elements	Composition Formula	Cu Composition	Sn Composition	Shelf Life Start	Storage/Refrigeration Temperature	Melting Point	Diameter	Wire Gauge	Form Weight	Form	Process	Type	Shelf Life	Flux Type
Amerway Inc CWSAC NCCW2 .032 1#	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.032 in	20 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months
Amerway Inc CWSAC RA3% .032 1#	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.032 in	20 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months	Rosin Activated (RA)

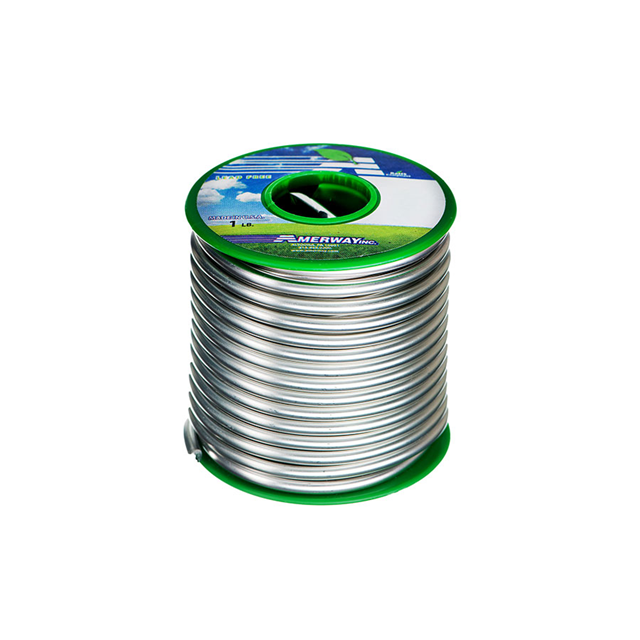

Amerway Inc CWSAC WRMAP .015	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.015 in	27 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months	Rosin Mildly Activated (RMA)
Amerway Inc CWSAC WRMAP3 .062	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.062 in	14 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months	Rosin Mildly Activated (RMA)
Amerway Inc CWSAC WRAP .015	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.015 in	27 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months	Rosin Activated (RA)
Amerway Inc CWSAC NC.015 1#	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.015 in	27 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months
Amerway Inc CWSAC NCCW2.2 .062	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.062 in	14 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months
Amerway Inc CWSAC WRMAP3 .032	1 lbs	3 %	Ag Cu Sn	Sn96.5Ag3Cu0.5	0.5 %	96.5 %	Date of Manufacture	Room Temperature	428 °F	0.032 in	20 AWG	1 lb	Spool	Lead Free	Wire Solder	60 Months	Rosin Mildly Activated (RMA)
