HDD Series

Catalog

INSERT MALE 108P+1GND HDD-108-M

Part	Housing Material	Material Flammability Rating	Current Rating (Amps)	Contact Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Size	Voltage Rating	Connector Type	Gender

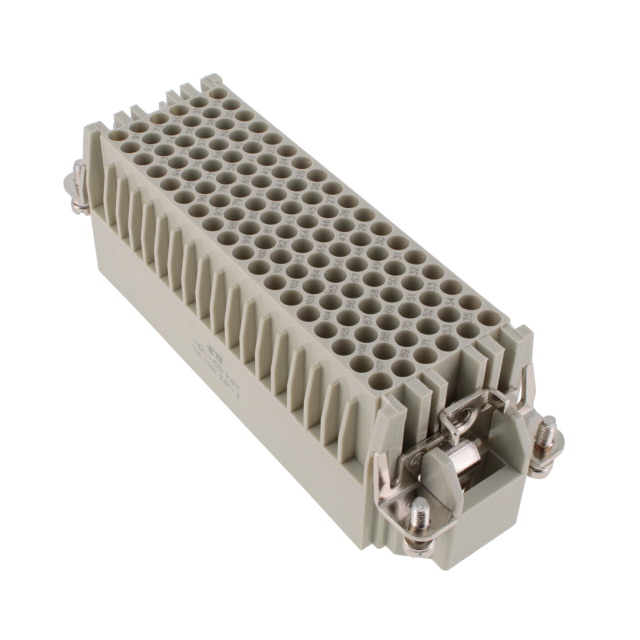

TE Connectivity AMP Connectors HDD-108-M	Polycarbonate (PC)	EN45545	10 A	CDM DDM	Crimp	125 °C	-40 C	108+Ground	H24B	250 V	Insert without Contacts	Male
TE Connectivity AMP Connectors HDD-108-F	Polycarbonate (PC)	EN45545	10 A	CDF DDF	Crimp	125 °C	-40 C	108+Ground	H24B	250 V	Insert without Contacts	Female

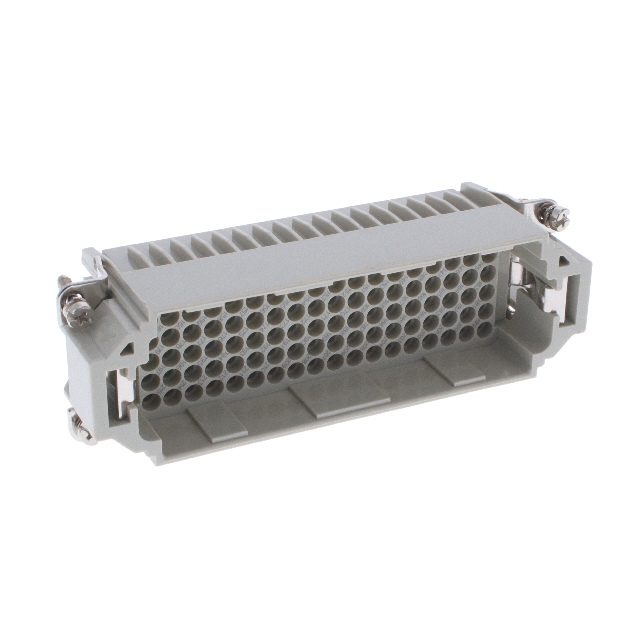

TE Connectivity AMP Connectors HDD-108-M 109-216	Polycarbonate (PC)	EN45545	10 A	CDM DDM	Crimp	125 °C	-40 C	108+Ground	H24B	250 V	Insert without Contacts	Male
