0627-0 Series

Catalog

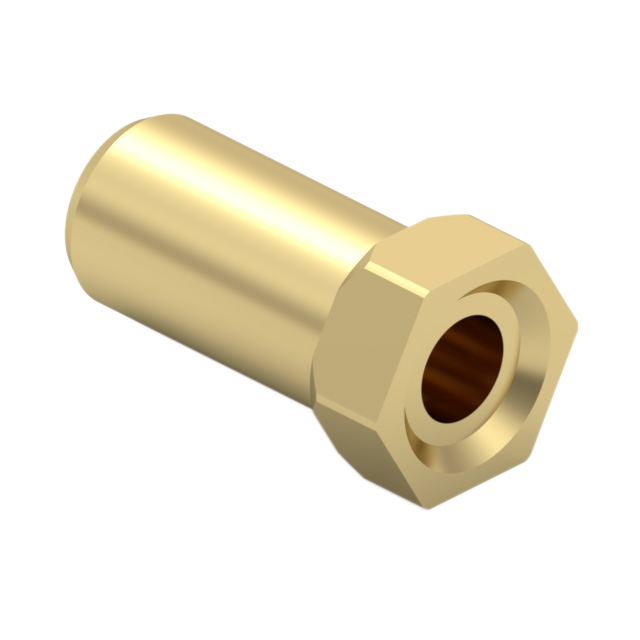

ZERO PROFILE RECEPTACLE FOR LEAD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Tail Type	Length - Overall	Length - Overall	Contact Material	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter	Flange Diameter	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0627-0-15-15-21-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Gold	No Tail	0.093 in	2.36 mm	Beryllium Copper	2.01 mm	0.079 in	0.055 in	1.4 mm	1.37 mm	0.054 in	Press-Fit	0.38 mm	0.022 in	0.015 "	0.56 mm	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0627-0-15-15-11-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Gold	No Tail	0.093 in	2.36 mm	Beryllium Copper	2.01 mm	0.079 in	0.055 in	1.4 mm	1.37 mm	0.054 in	Press-Fit	0.38 mm	0.02 in	0.015 "		0.031 in	0.79 mm	0.51 mm
