CC1120 Series

Catalog

RF TRANSCEIVER FSK/GFSK/MSK/OOK 2.5V/3.3V 32-PIN VQFN EP T/R

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Current - Transmitting [Max]	Current - Transmitting [Min]	Sensitivity	Type	Frequency [Min]	Frequency [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Current - Receiving [Max]	Current - Receiving [Min]	RF Family/Standard	Mounting Type	GPIO	Serial Interfaces	Data Rate (Max) [Max]	Package / Case	Supplied Contents	For Use With/Related Products	Frequency
Texas Instruments CC1120RHMR	3.6 V	2 V	32-VQFN (5x5)	54 mA	32 mA	-127 dBc	TxRx + MCU	164 MHz 274 MHz 410 MHz 820 MHz	192 MHz 320 MHz 480 MHz 960 MHz	85 °C	-40 °C	4 kB 256 B	23 mA	17 mA	General ISM < 1GHz	Surface Mount	4	SPI	200 kbps	32-VFQFN Exposed Pad
Texas Instruments CC1120EMK-420-470							Transceiver	420 MHz	470 MHz												Accessories Board(s)	CC1120

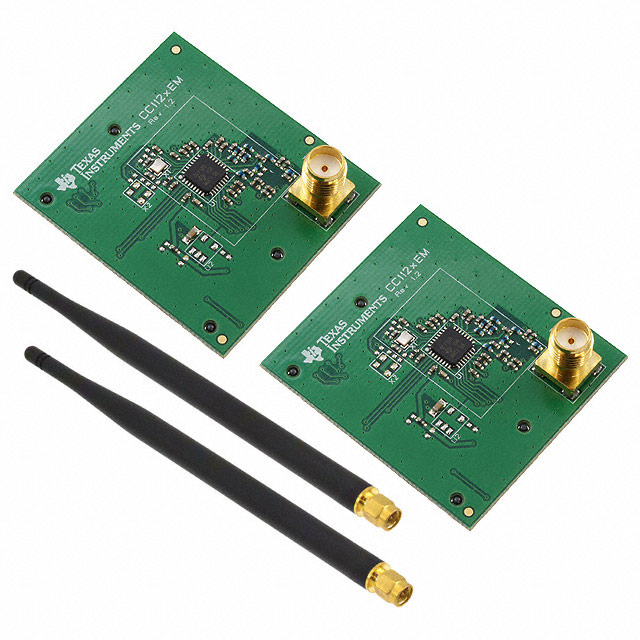

Texas Instruments CC1120EMK-955							Transceiver														Accessories Board(s)	CC1120	955 MHz

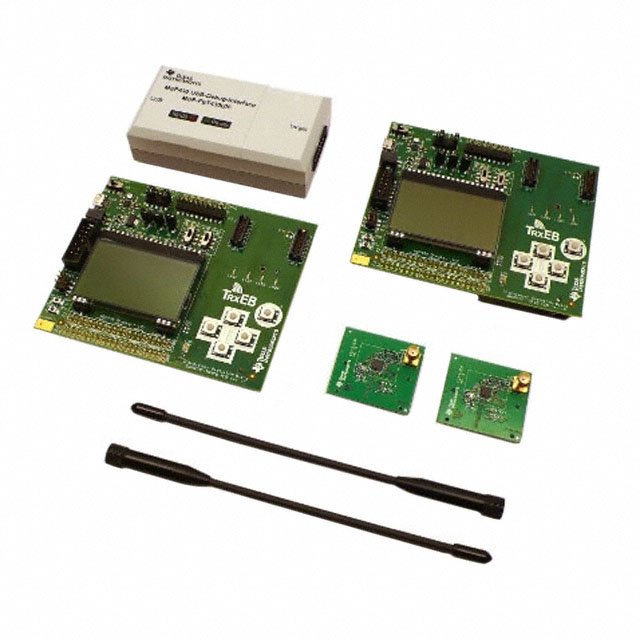

Texas Instruments CC1120DK							Transceiver ISM														Accessories Board(s) Cable(s)	CC1120	868 MHz 915 MHz
Texas Instruments CC1120RHBT	3.6 V	2 V	32-VQFN (5x5)	54 mA	32 mA	-127 dBc	TxRx + MCU	164 MHz 274 MHz 410 MHz 820 MHz	192 MHz 320 MHz 480 MHz 960 MHz	85 °C	-40 °C	4 kB 256 B	23 mA	17 mA	General ISM < 1GHz	Surface Mount	4	SPI	200 kbps	32-VFQFN Exposed Pad

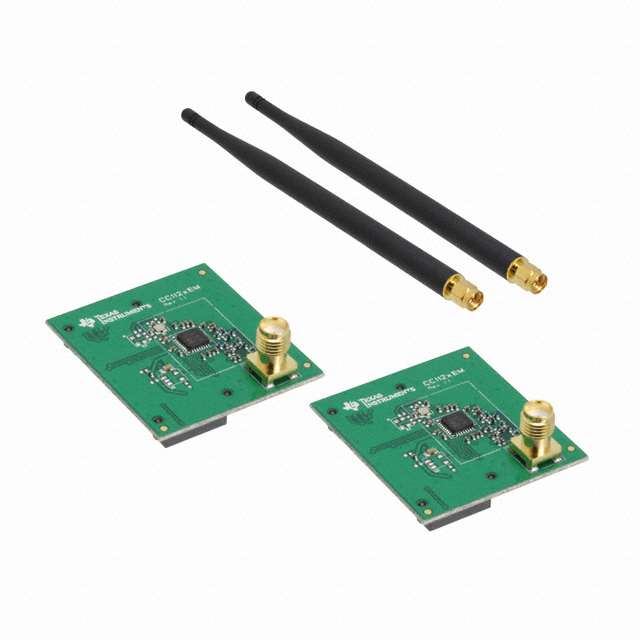

Texas Instruments CC1120EMK-868-915							Transceiver														Accessories Board(s)	CC1120
