AOTF7 Series

Catalog

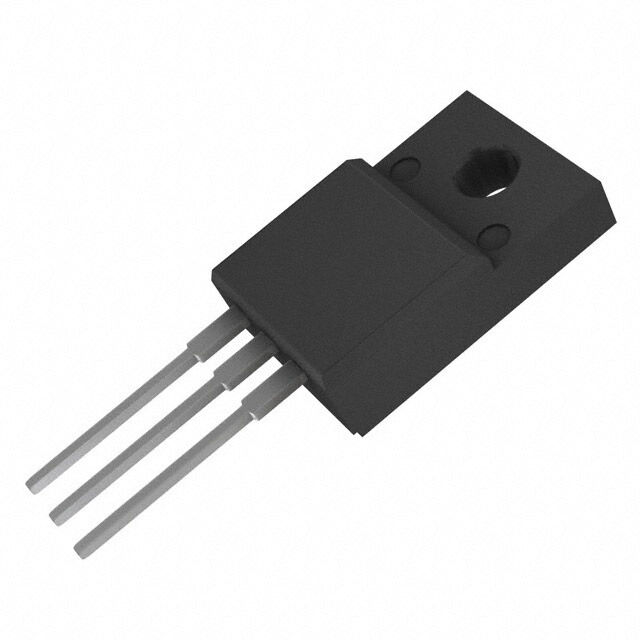

MOSFET N-CH 600V 7A TO220-3F

Part	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	FET Type	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Supplier Device Package	Power Dissipation (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]
Alpha & Omega Semiconductor Inc. AOTF7T60P	25 nC	1.1 Ohm	N-Channel	5 V	150 °C	-55 °C	MOSFET (Metal Oxide)	10 V	30 V	TO-220F	38 W	Through Hole	7 A	600 V	965 pF	TO-220-3 Full Pack
Alpha & Omega Semiconductor Inc. AOTF7T60L		1.1 Ohm	N-Channel	5 V	150 °C	-55 °C	MOSFET (Metal Oxide)	10 V	30 V	TO-220F	29 W	Through Hole	7 A	600 V		TO-220-3 Full Pack	24 nC	962 pF
Alpha & Omega Semiconductor Inc. AOTF7N65	23 nC	1.56 Ohm	N-Channel	4.5 V	150 °C	-55 °C	MOSFET (Metal Oxide)	10 V	30 V	TO-220F		Through Hole	7 A	650 V	1060 pF	TO-220-3 Full Pack			38.5 W
Alpha & Omega Semiconductor Inc. AOTF7N60FD	25 nC	1.45 Ohm	N-Channel		150 °C	-55 °C	MOSFET (Metal Oxide)	10 V	30 V	TO-220F		Through Hole	7 A	600 V		TO-220-3 Full Pack		995 pF	39 W
