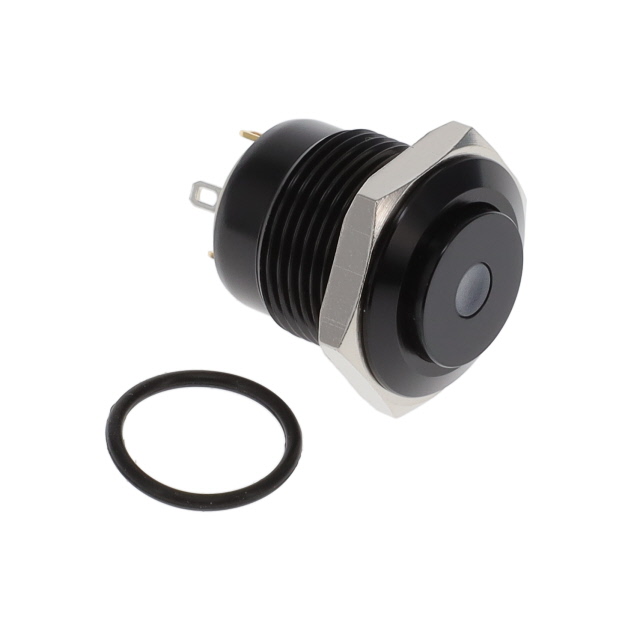

PV6H24011 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSHBUTTON SPST 2A 48V
| Part | Mechanical Life | Electrical Life | Type | Color - Actuator/Cap | Switch Function | Mounting Type | Voltage Rating - DC | Illumination Type, Color | Circuit | Ingress Protection | Termination Style | Actuator Type | Actuator Marking | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 1000000 Cycles | 200000 Cycles | Anti-Vandal Illuminated | Black | Off-Mom | Panel Mount Front | 48 V | Green LED | SPST-NO | IP65 - Dust Tight Water Resistant | Solder Lug | Button Round | No Marking | 16 mm | 2 A | -20 ░C | 70 °C | 2.8 VDC |
