8778MN Series

Catalog

MULTI-PAIR 12COND 22AWG BLU

Part	Shield Material	Shield Coverage	Shield Type	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Length [x]	Length [x]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Number of Conductors	Voltage	Jacket Color	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Usage	Length	Length
Belden Inc. 8778MN 006100	Aluminum	100 %	Foil	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	0.317 in	8.05 mm	UL Style 2937	100 ft	30.5 m	Multi-Pair	80 °C	-20 ░C	22 AWG	12	300 VDC	Blue	Polypropylene (PP)	34 AWG	19	Copper Tinned	Audio Control Instrumentation
Belden Inc. 8778MN 0041000	Aluminum	100 %	Foil	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	0.317 in	8.05 mm	UL Style 2937			Multi-Pair	80 °C	-20 ░C	22 AWG	12	300 VDC	Yellow	Polypropylene (PP)	34 AWG	19	Copper Tinned	Audio Control Instrumentation	304.8 m	1000 ft
Belden Inc. 8778MN 004100	Aluminum	100 %	Foil	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	0.317 in	8.05 mm	UL Style 2937	100 ft	30.5 m	Multi-Pair	80 °C	-20 ░C	22 AWG	12	300 VDC	Yellow	Polypropylene (PP)	34 AWG	19	Copper Tinned	Audio Control Instrumentation
Belden Inc. 8778MN 0061000	Aluminum	100 %	Foil	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	0.317 in	8.05 mm	UL Style 2937			Multi-Pair	80 °C	-20 ░C	22 AWG	12	300 VDC	Blue	Polypropylene (PP)	34 AWG	19	Copper Tinned	Audio Control Instrumentation	304.8 m	1000 ft

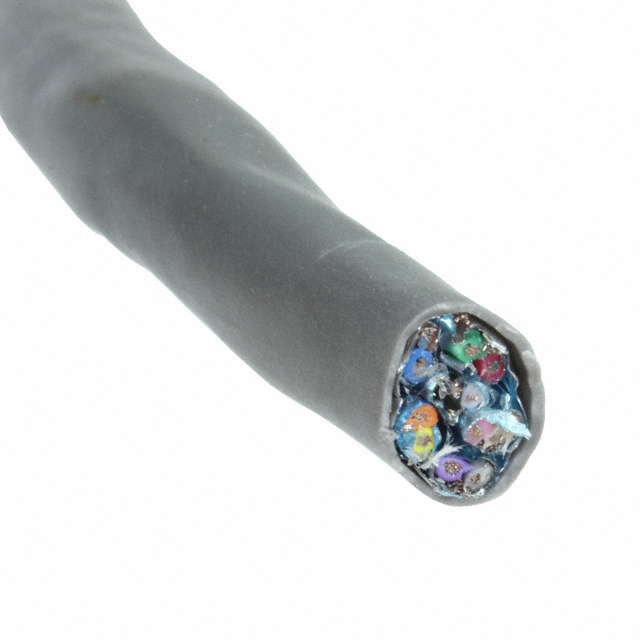

Belden Inc. 8778MN 008100	Aluminum	100 %	Foil	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	0.317 in	8.05 mm		100 ft	30.5 m	Multi-Pair	80 °C	-20 ░C	22 AWG	12		Gray	Polypropylene (PP)	34 AWG	19	Copper Tinned	Audio Control Instrumentation
