OSTTH05 Series

Catalog

TERM BLOCK PLUG 5POS 90DEG 3.5MM

Part	Contact Material	Material Flammability Rating	Housing Material	Wire Strip Length [Min]	Wire Strip Length [Max]	Torque - Screw	Torque - Screw	Positions Per Level	Contact Mating Finish	Type	Voltage - UL	Features	Termination Style	Mounting Type	Number of Levels	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Pitch	Pitch	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color
On Shore Technology Inc. OSTTH052150	Brass	UL94 V-0	Brass	5 mm	6 mm	1.7 Lb-In	0.2 Nm	5	Nickel	Plug for Unshrouded Header	300 V	Interlocking (Side)	Screw	Free Hanging (In-Line)	1	115 °C	-40 C	28 AWG	16 AWG	3.5 mm	0.138 "	5

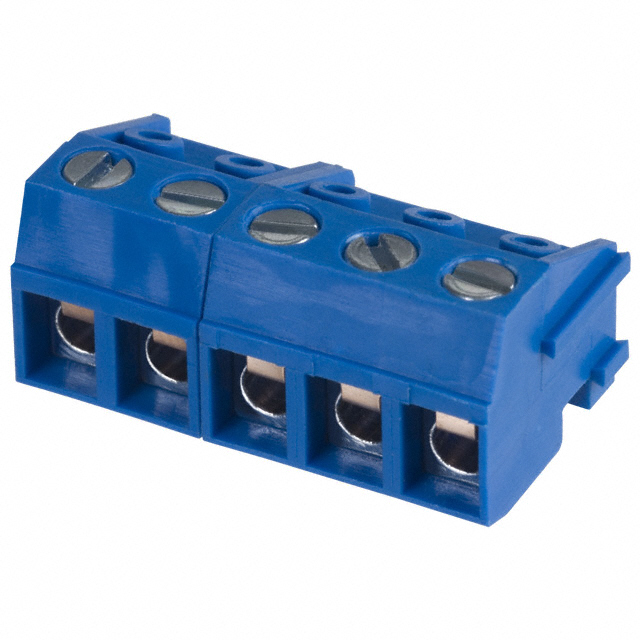

On Shore Technology Inc. OSTTH050160	Brass	UL94 V-0	Brass	5 mm	6 mm	3.5 Lb-In	0.4 Nm	5	Nickel	Plug for Unshrouded Header	300 V	Interlocking (Side)	Screw	Free Hanging (In-Line)	1	115 °C	-40 C	22 AWG	14 AWG	5 mm	0.197 in	5	1.5 mm˛	0.34 mm˛	0.34 mm²	1.5 mm²	Blue
