IO-XLR3 Series

Catalog

XLR CONNECTOR, 3 CONTACTS, JACK, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC BODY, JL SERIES

Part	Contact Material	Insert Material [custom]	Insert Material [custom]	Applications	Voltage Rating	Features	Current Rating (Amps)	Color	Shell Finish	Shell Material	Connector Type	Primary Material	Shielding	Mounting Feature	Mounting Type	Contact Finish - Mating	Orientation	Fastening Type	Shell Size - Insert	2nd Connector Number of Positions Loaded	Cable Material	1st Connector Number of Positions Loaded	Length	Length	Assembly Configuration	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	2nd Connector Gender	1st Connector Shell Size - Insert	1st Connector Gender	1st Connector Number of Positions	2nd Connector Type	1st Connector Type	2nd Connector Number of Positions	2nd Connector Shell Size - Insert	Length [x]	Length [x]	Termination	Insert Material	Backshell Material, Plating
IO Audio Technologies IO-XLR3-F-JL	Phosphor Bronze	Nylon	Polyamide (PA)	Audio Lighting Control Medical Video	125 VAC	Ground	15 A	Silver	Nickel	Zinc Die Cast	Receptacle Female Sockets	Metal	Shielded	Flange	Panel Mount	Silver	Keyed	Latch Lock	XLR
IO Audio Technologies IO-XLR3-6-X								Black					Double Shielded							All	Polyvinyl Chloride (PVC)	All	6 ft	1.83 m	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	Round	Female Sockets	XLR	Male Pins	3	Plug	Receptacle	3	XLR
IO Audio Technologies IO-XLR3-3-P								Black					Double Shielded							All	Polyvinyl Chloride (PVC)	All	3 ft	91.44 cm	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	Round	Female Sockets	XLR	Male Pins	3	Plug	Receptacle	3	XLR
IO Audio Technologies IO-XLR3-6-E								Black					Shielded							All	Polyvinyl Chloride (PVC)	All	6 ft	1.83 m	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	Round	Female Sockets	XLR	Male Pins	3	Plug	Receptacle	3	XLR
IO Audio Technologies IO-XLR3-100-P								Black					Double Shielded							All	Polyvinyl Chloride (PVC)	All			Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	Round	Female Sockets	XLR	Male Pins	3	Plug	Receptacle		XLR	100 ft	30.5 m
IO Audio Technologies IO-XLR3-10-E								Black					Shielded							All	Polyvinyl Chloride (PVC)	All	10 ft	3.05 m	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	Round	Female Sockets	XLR	Male Pins	3	Plug	Receptacle		XLR

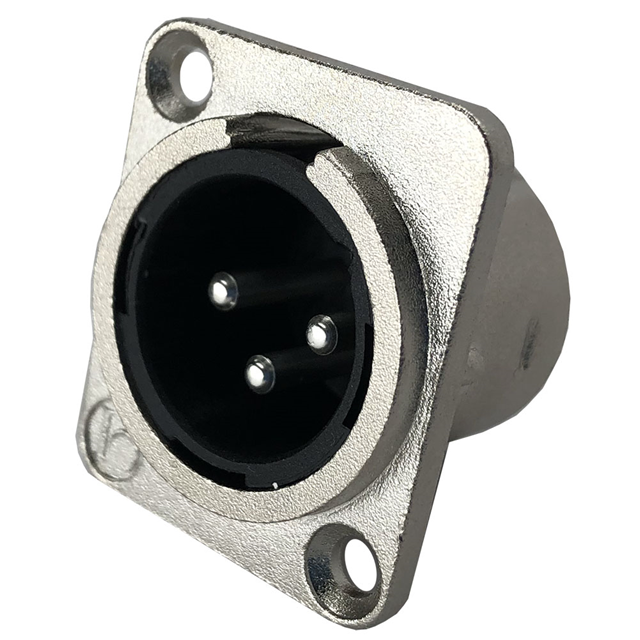

IO Audio Technologies IO-XLR3-M-JL	Phosphor Bronze	Nylon	Polyamide (PA)	Audio Lighting Control Medical Video	125 VAC	Ground	15 A	Silver	Nickel	Zinc Die Cast	Receptacle Male Pins	Metal	Shielded	Flange	Panel Mount	Silver	Keyed	Latch Lock	XLR

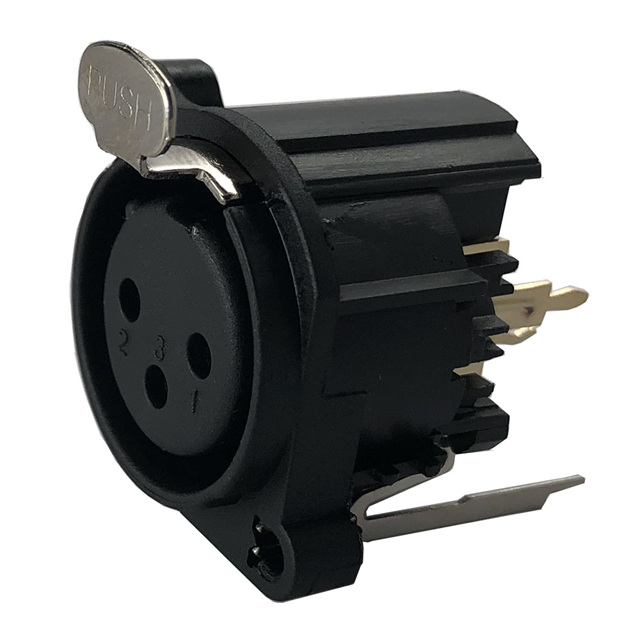

IO Audio Technologies IO-XLR3-F-EV	Brass	Nylon	Polyamide (PA)	Audio Lighting Control Medical Video		Board Guide Ground		Black			Receptacle Female Sockets	Plastic	Unshielded	Flange	Panel Mount Through Hole	Gold	Keyed	Latch Lock	XLR																				Solder
IO Audio Technologies IO-XLR3-M-BKAU				Audio	125 VAC	Backshell Strain Relief	15 A	Black		Zinc Die Cast	Receptacle Male Pins	Metal	Unshielded		Free Hanging (In-Line)	Gold		Latch Lock	XLR																					Plastic	Zinc Die Cast
IO Audio Technologies IO-XLR3-25-E								Black					Shielded							All	Polyvinyl Chloride (PVC)	All	25 ft	7.62 m	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	Round	Female Sockets	XLR	Male Pins	3	Plug	Receptacle		XLR
