9439 Series
Manufacturer: Belden Inc.
Beta
⌘K

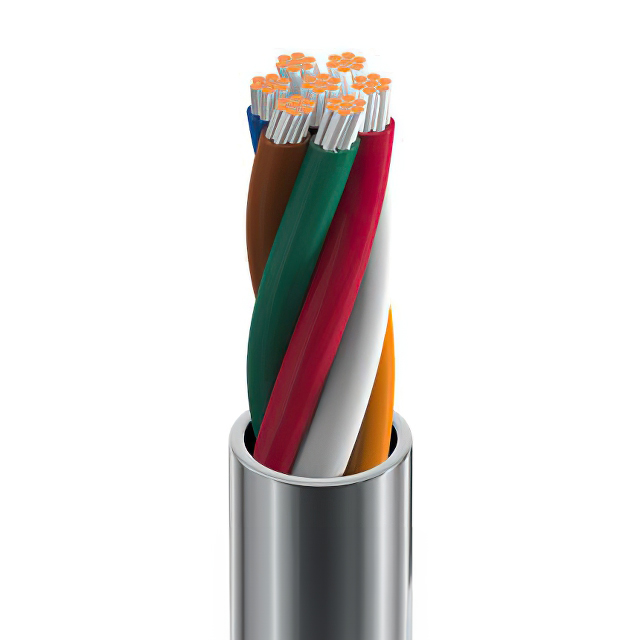

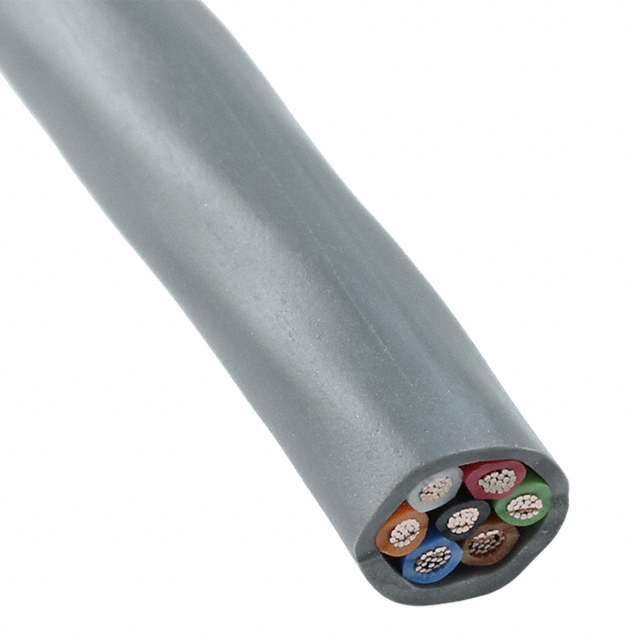

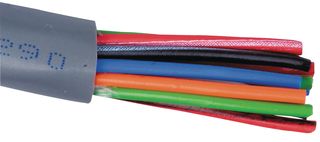

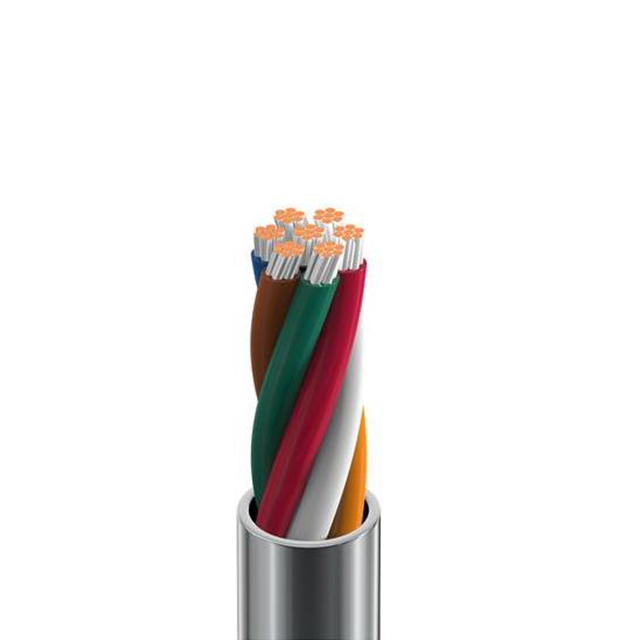

CABLE 7COND 20AWG CHROME
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Length | Length | Cable Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Voltage | Usage | Jacket Color | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 °C | -20 ░C | 28 AWG | 7 | 7 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Conductor | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Audio Control Instrumentation | Chrome | 20 AWG | 6.6 mm | 0.26 in | UL Style 2464 | ||
Belden Inc. | 80 °C | -20 ░C | 28 AWG | 7 | 7 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Conductor | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Audio Control Instrumentation | Chrome | 20 AWG | 6.6 mm | 0.26 in | UL Style 2464 | ||
Belden Inc. | 80 °C | -20 ░C | 28 AWG | 7 | 7 | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Conductor | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Audio Control Instrumentation | Chrome | 20 AWG | 6.6 mm | 0.26 in | UL Style 2464 | ||
 Belden Inc. | 80 °C | -20 ░C | 28 AWG | 7 | 7 | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Conductor | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Chrome | 20 AWG | 6.6 mm | 0.26 in | UL Style 2464 | |||
 Belden Inc. | 80 °C | -20 ░C | 28 AWG | 7 | 7 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Chrome | 20 AWG | 6.6 mm | 0.26 in | UL Style 2464 | 100 ft | 30.5 m |
