RJK0659DPA Series

Nch Power MOSFET 60V 30A 8mohm Power SON-8 5x6

Catalog

Nch Power MOSFET 60V 30A 8mohm Power SON-8 5x6

Part	Package / Case	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Drain to Source Voltage (Vdss)	Mounting Type	Power Dissipation (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Supplier Device Package	FET Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	Rds On (Max) @ Id, Vgs	Operating Temperature

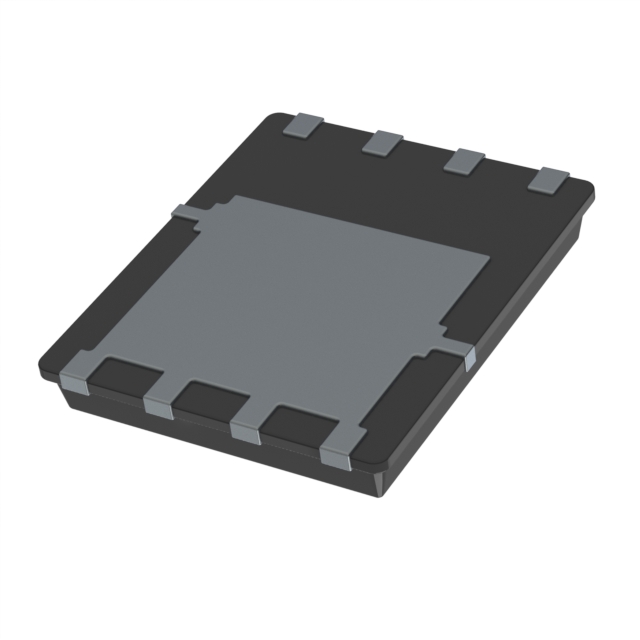

Renesas Electronics Corporation RJK0659DPA-00#J5A	8-WFDFN Exposed Pad	30 A	20 V	60 V	Surface Mount	55 W	10 V	30.6 nC	8-WPAK	N-Channel	2400 pF	MOSFET (Metal Oxide)	8 mOhm	150 °C

Nch Power MOSFET 60V 30A 8mohm Power SON-8 5x6

MOSFETs suitable for switching (motor drive, etc.) and load switch applications. Low on-resistance, high-speed switching, and high-robustness.
