87452 Series

Catalog

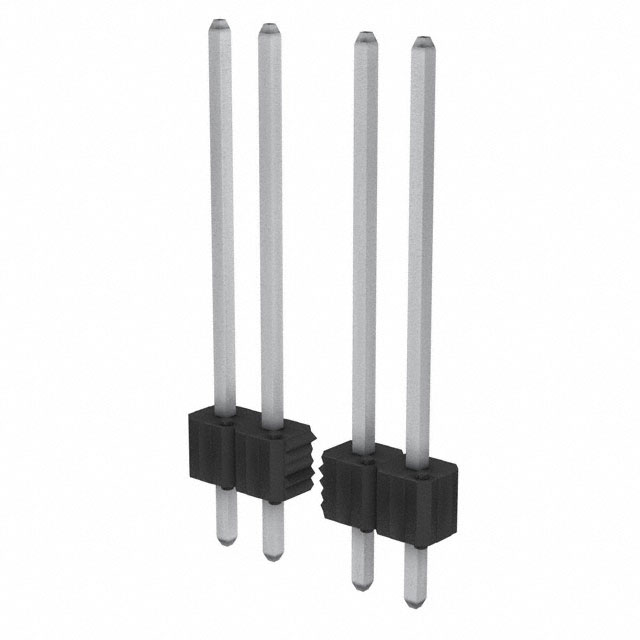

CONN HEADER VERT 16POS 2.54MM

Part	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Insulation Color	Number of Rows	Mounting Type	Contact Shape	Termination	Contact Material	Contact Type	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 87452-416HLF	0.1 in	2.54 mm	UL94 V-0	Tin	15.75 mm	0.62 in	16	Push-Pull	0.1 in	2.54 mm	Header	21.34 mm	0.84 in	0.12 in	3.05 mm	Unshrouded	Black	1	Through Hole	Square	Press-Fit Solder	Phosphor Bronze	Male Pin	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	2.54 çm	100 çin
