830-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER R/A 17POS 2MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Shape	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Mating	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Finish - Post	Fastening Type	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Features	Number of Positions	Overall Contact Length	Overall Contact Length	Number of Positions [custom]
Preci-Dip 830-10-017-20-001101	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular	0.087 "	2.2 mm	0.25 µm	10 µin	Right Angle Through Hole	Gold	1	3 A	UL94 V-0	Unshrouded	0.126 "	3.2 mm	Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black
Preci-Dip 830-10-016-30-001191	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular			0.25 µm	10 µin	Surface Mount	Gold	1	3 A	UL94 V-0	Unshrouded			Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black	Pick and Place	16
Preci-Dip 830-10-017-10-001101	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular			0.25 µm	10 µin	Through Hole	Gold	1	3 A	UL94 V-0	Unshrouded	0.114 in	2.9 mm	Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black			10 mm	0.394 in
Preci-Dip 830-10-015-30-001101	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular			0.25 µm	10 µin	Surface Mount	Gold	1	3 A	UL94 V-0	Unshrouded			Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black		15

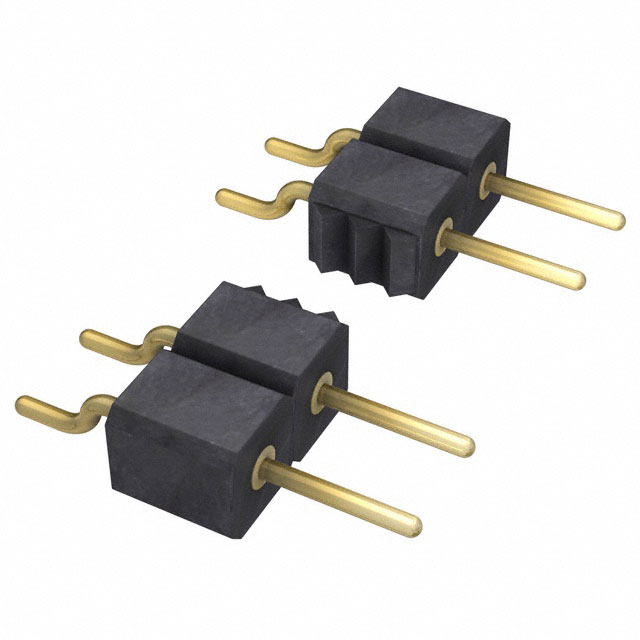

Preci-Dip 830-10-022-40-001101	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular	0.087 "	2.2 mm	0.25 µm	10 µin	Right Angle Surface Mount	Gold	1	3 A	UL94 V-0	Unshrouded			Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black		22
Preci-Dip 830-10-046-40-001101	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular	0.087 "	2.2 mm	0.25 µm	10 µin	Right Angle Surface Mount	Gold	1	3 A	UL94 V-0	Unshrouded			Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black		46
Preci-Dip 830-10-031-10-001101	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular			0.25 µm	10 µin	Through Hole	Gold	1	3 A	UL94 V-0	Unshrouded	0.114 in	2.9 mm	Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black			10 mm	0.394 in	31
Preci-Dip 830-10-050-20-001101	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular	0.087 "	2.2 mm	0.25 µm	10 µin	Right Angle Through Hole	Gold	1	3 A	UL94 V-0	Unshrouded	0.126 "	3.2 mm	Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black		50
Preci-Dip 830-10-011-40-001191	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular	0.087 "	2.2 mm	0.25 µm	10 µin	Right Angle Surface Mount	Gold	1	3 A	UL94 V-0	Unshrouded			Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black		11
Preci-Dip 830-10-005-30-001191	10 Áin	0.25 çm	-55 C	125 °C	150 VDC	Circular			0.25 µm	10 µin	Surface Mount	Gold	1	3 A	UL94 V-0	Unshrouded			Header	Gold	Push-Pull	Brass	0.079 "	2 mm	All	Solder	Male Pin	0.141 in	3.6 mm	Black	Pick and Place	5
