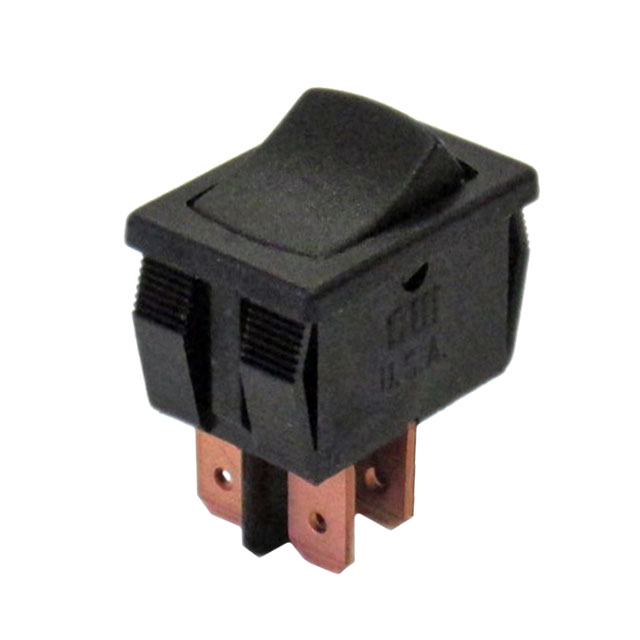

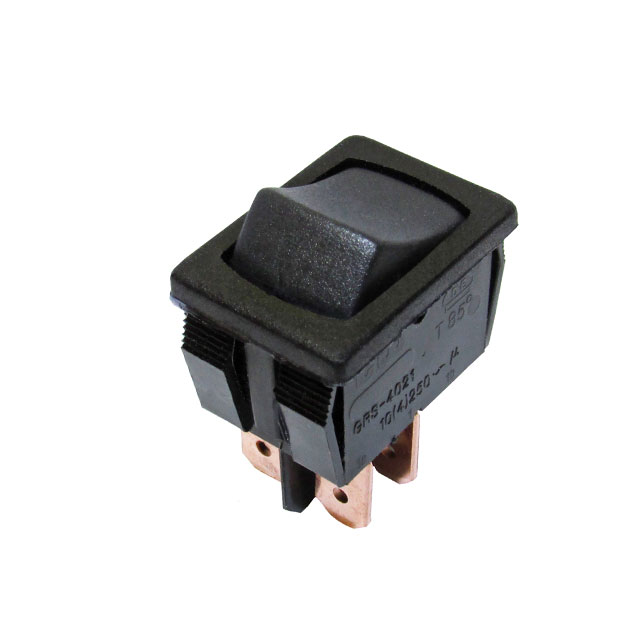

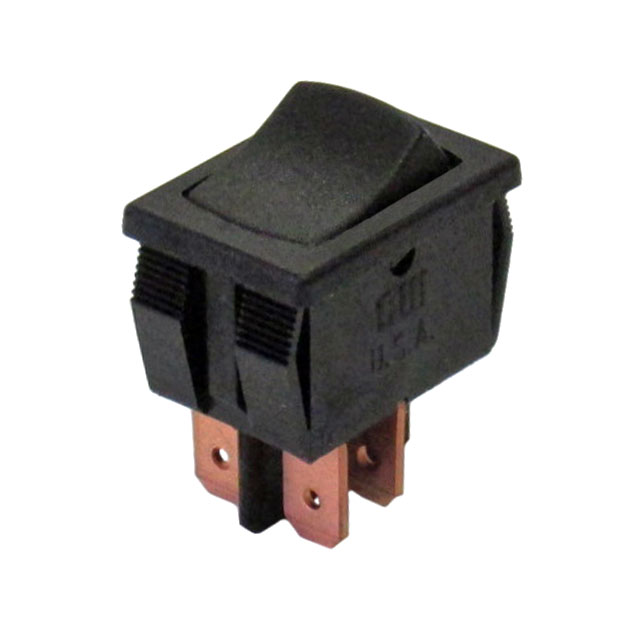

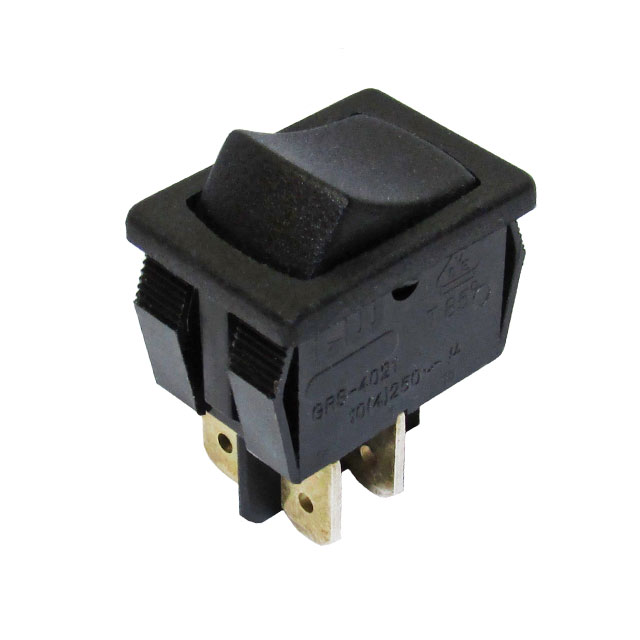

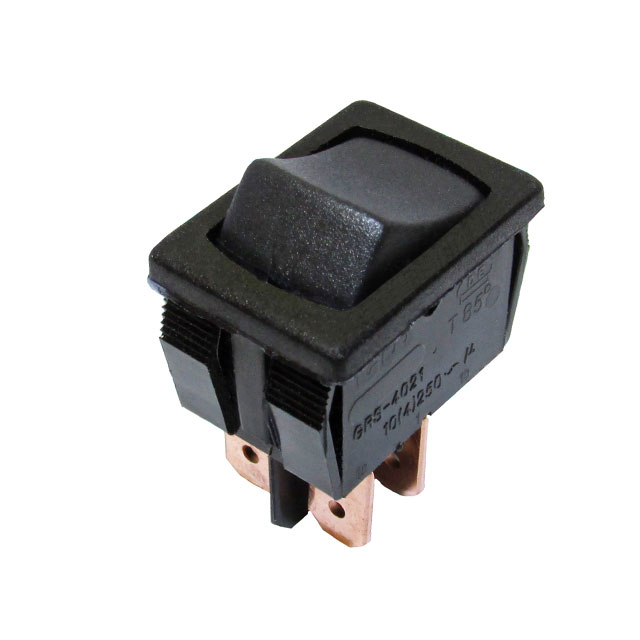

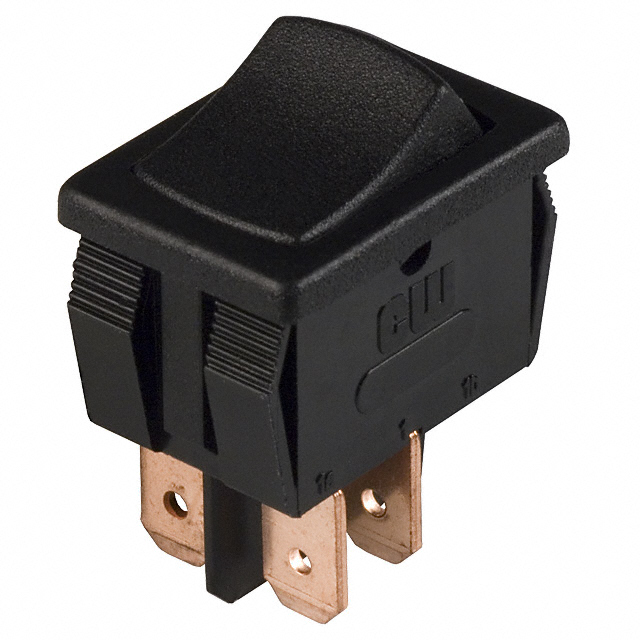

GRS-4021 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH ROCKER DPST-NC 13A 125V
| Part | Electrical Life | Mechanical Life | Actuator Type | Voltage Rating - AC | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Color - Actuator/Cap | Features | Actuator Marking | Switch Function | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST-NC | -20 ░C | 105 ░C | 13 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | Terminal Barriers | No Marking | On-Mom | Quick Connect |

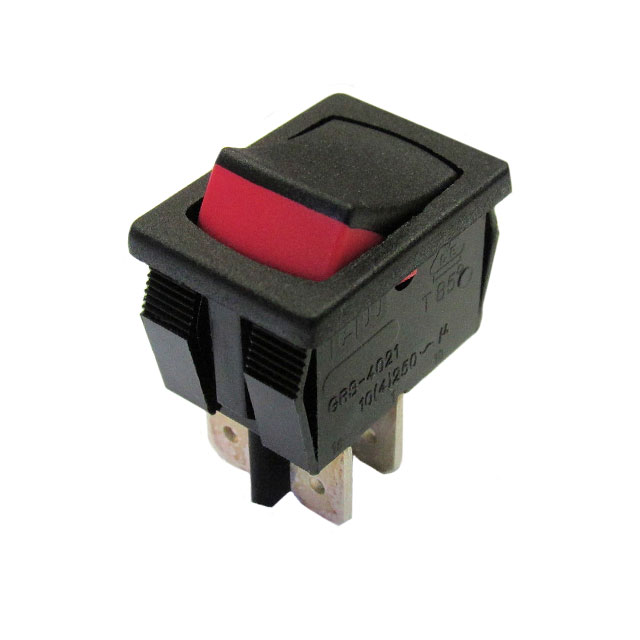

 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST | -20 ░C | 105 ░C | 16 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black Red | Terminal Barriers | No Marking | On-Off | Quick Connect |
 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST | -20 ░C | 105 ░C | 13 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | Terminal Barriers | No Marking | On-Off | Quick Connect |

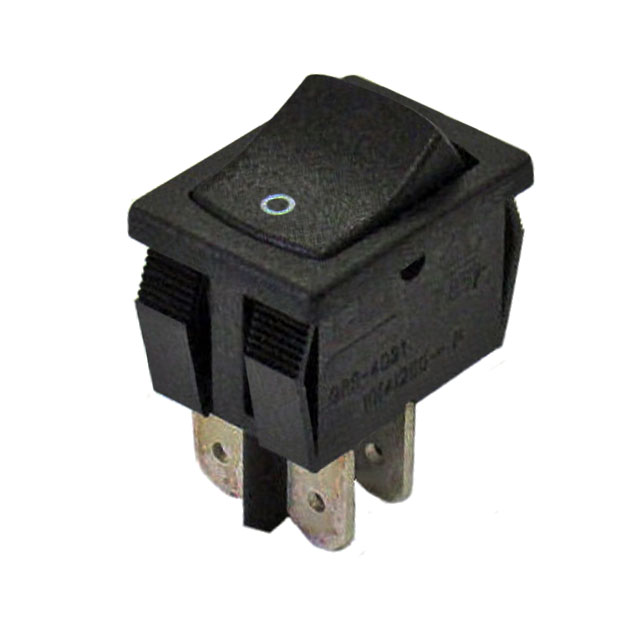

 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST | -20 ░C | 105 ░C | 16 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | Terminal Barriers | O | On-Off | Quick Connect |
 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST-NC | -20 ░C | 105 ░C | 13 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | Terminal Barriers | No Marking | On-Mom | Quick Connect |
 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST-NC | -20 ░C | 105 ░C | 8 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | Terminal Barriers | No Marking | On-Mom | Quick Connect |
 CW Industries | 25000 Steps | 100000 Cycles | Concave (Curved) | 125 V | DPST-NO | -20 ░C | 105 ░C | 13 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | Terminal Barriers | No Marking | Off-Mom | Quick Connect |

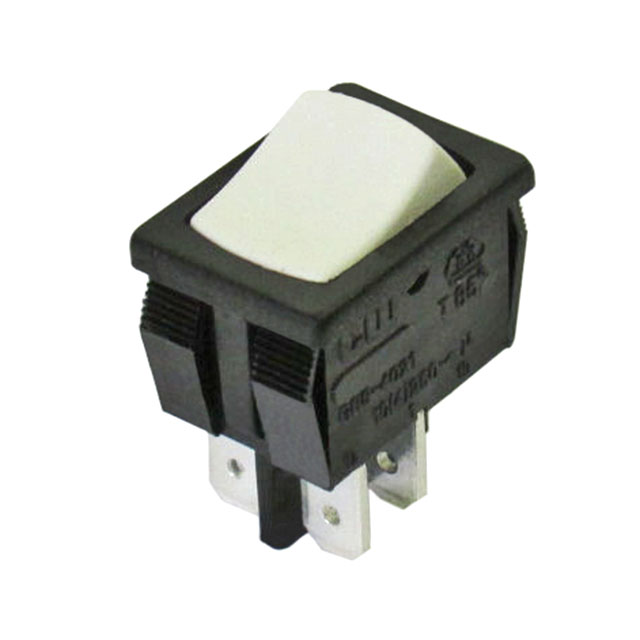

 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST | -20 ░C | 105 ░C | 16 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | White | Terminal Barriers | No Marking | On-Off | Quick Connect |

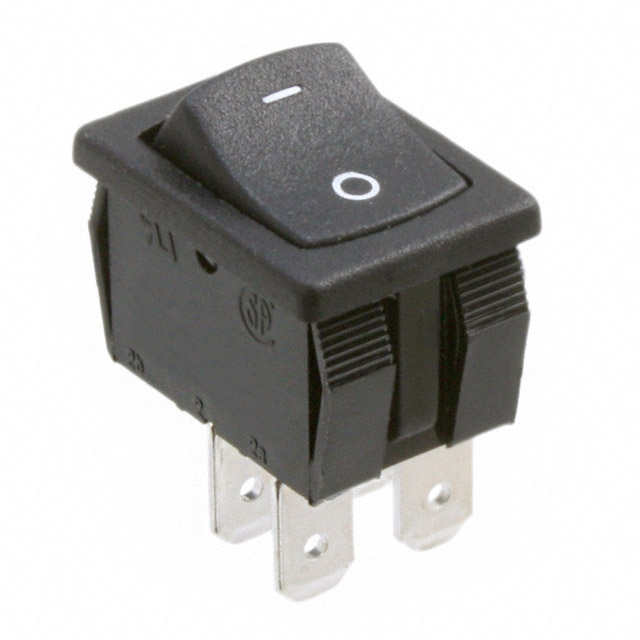

 CW Industries | 25000 Steps | 100000 Cycles | Concave (Curved) | 125 V | DPST | -20 ░C | 105 ░C | 16 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | O I | On-Off | Quick Connect | |
 CW Industries | 25000 Steps | 25000 Steps | Concave (Curved) | 125 V | DPST-NO | -20 ░C | 105 ░C | 8 A | 12.9 mm | 19.2 mm | Panel Mount Snap-In | Black | Terminal Barriers | No Marking | Off-Mom | Quick Connect |
