HDF Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, HIGH DENSITY, PLUG, NANOOK SERIES, 44 CONTACTS, DB, SOLDER
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Material | Connector Type | Material Flammability Rating | Contact Type | Contact Finish | Ingress Protection | Current Rating (Amps) | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Features | Shell Material, Finish | Number of Rows [custom] | Shell Size, Connector Layout | Connector Style | Flange Feature | Termination | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

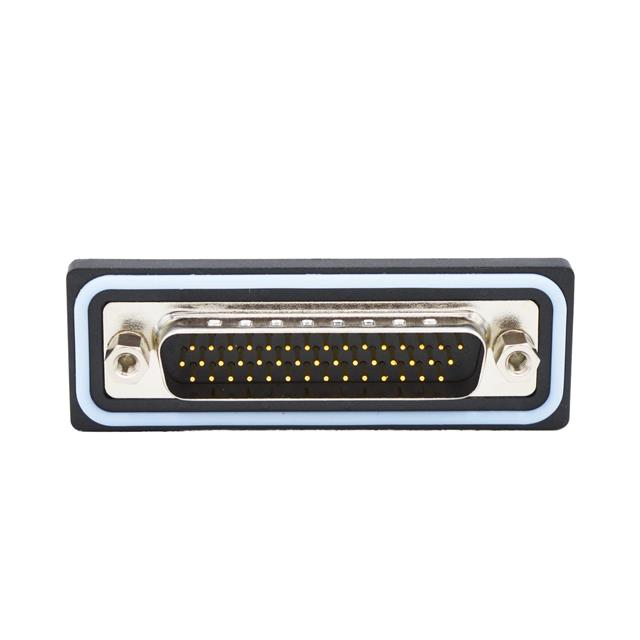

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Plug Male Pins | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 44 | 30 Áin | 0.76 Ám | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | Nickel Plated Steel | 3 | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Solder | ||||

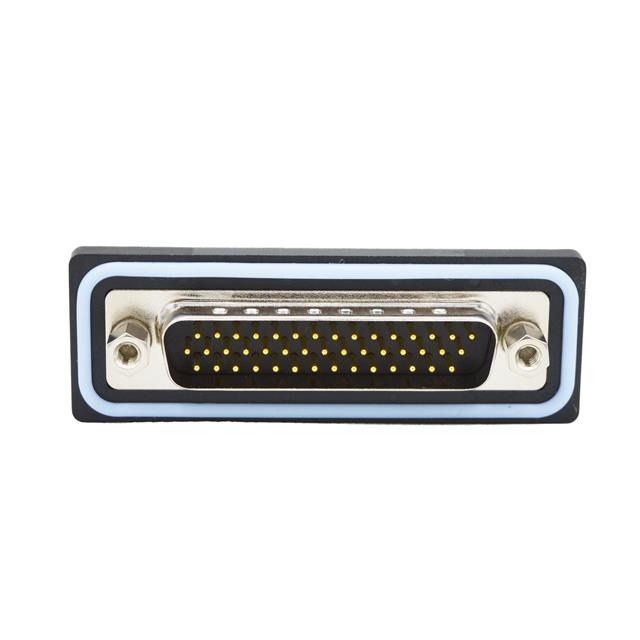

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Plug Male Pins | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 44 | 30 Áin | 0.76 Ám | Panel Mount | Grounding Indents | Nickel Plated Steel | 3 | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | |||||

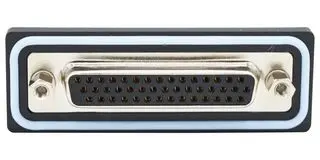

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Receptacle Female Sockets | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 44 | Panel Mount | Nickel Plated Steel | 3 | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Flash | |||||||

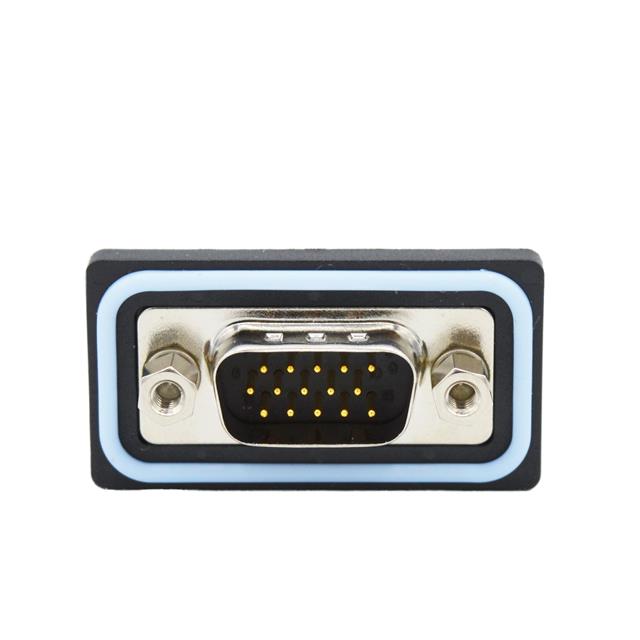

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Plug Male Pins | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 15 | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | Nickel Plated Steel | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Solder | Flash | (DE E) High Density | 1 | ||||

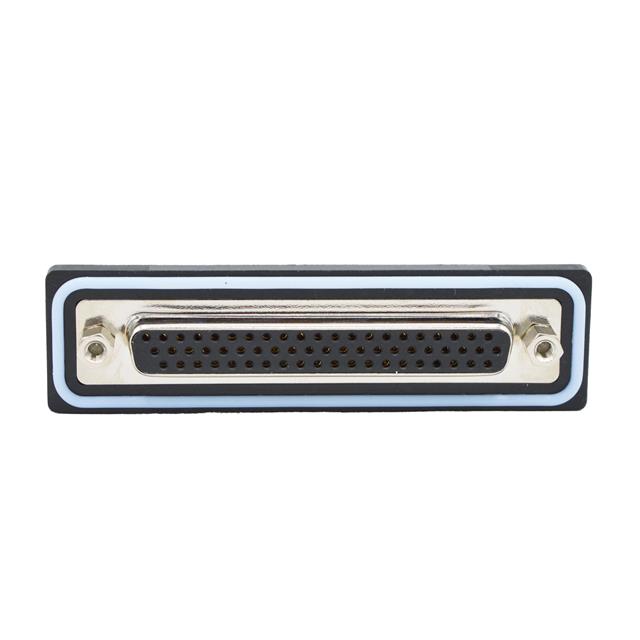

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Receptacle Female Sockets | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 62 | Panel Mount Through Hole | Board Lock | Nickel Plated Steel | 3 | 4 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Solder | Flash | C DC | ||||
 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Receptacle Female Sockets | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 62 | Panel Mount Right Angle Through Hole | Board Lock Mounting Brackets | Nickel Plated Steel | 3 | 4 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Solder | Flash | C DC | ||||

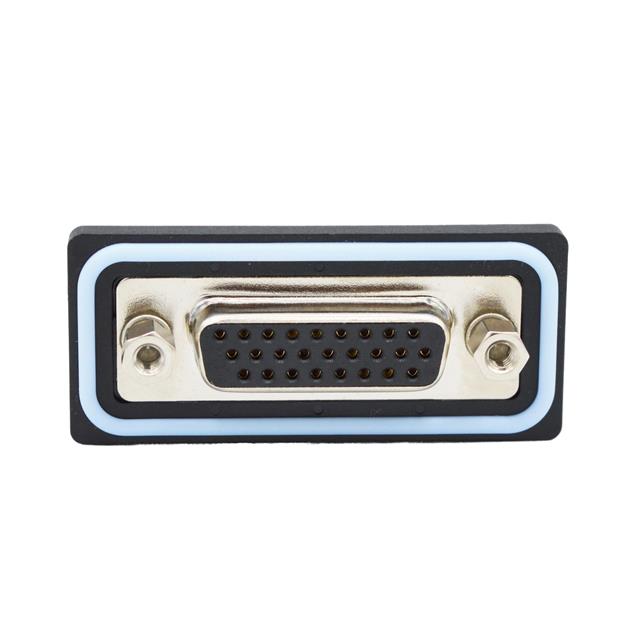

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Receptacle Female Sockets | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 26 | Panel Mount Through Hole | Nickel Plated Steel | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Solder | Flash | 2 | DA A | |||||

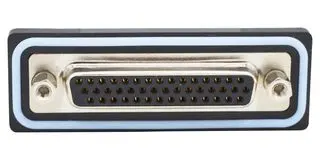

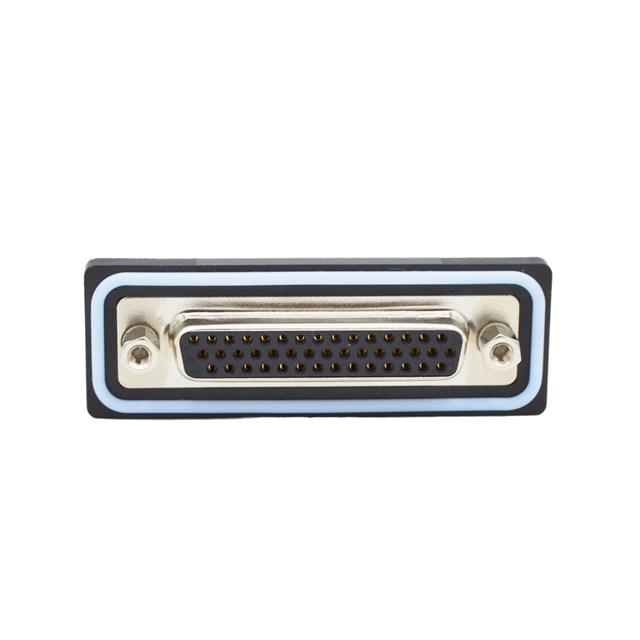

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Receptacle Female Sockets | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 44 | 30 Áin | 0.76 Ám | Panel Mount Through Hole | Nickel Plated Steel | 3 | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Solder | |||||
 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Plug Male Pins | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 26 | Panel Mount | Grounding Indents | Nickel Plated Steel | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Flash | 2 | DA A | |||||

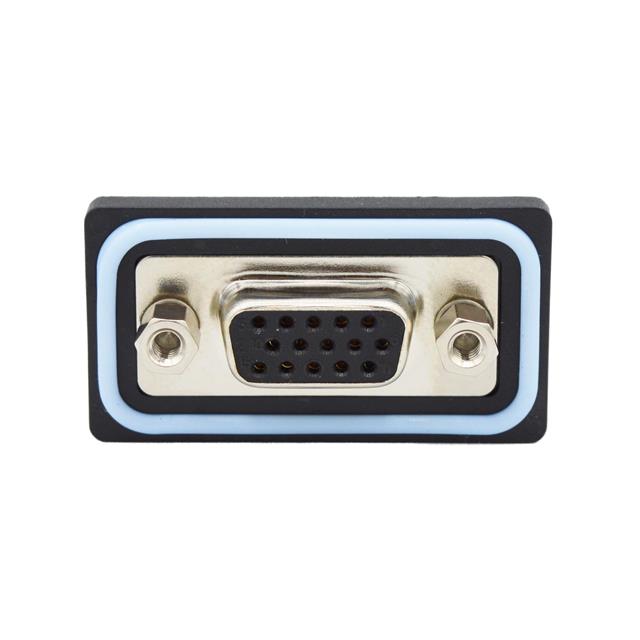

 NorComp Inc. | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Brass | Receptacle Female Sockets | UL94 V-0 | Signal | Gold | IP67 - Dust Tight Waterproof | 3 A | 15 | 30 Áin | 0.76 Ám | Panel Mount Right Angle Through Hole | Board Lock Mounting Brackets | Nickel Plated Steel | 3 | D-Sub High Density | 4-40 Mating Side Female Screwlock | Solder | (DE E) High Density | 1 |
