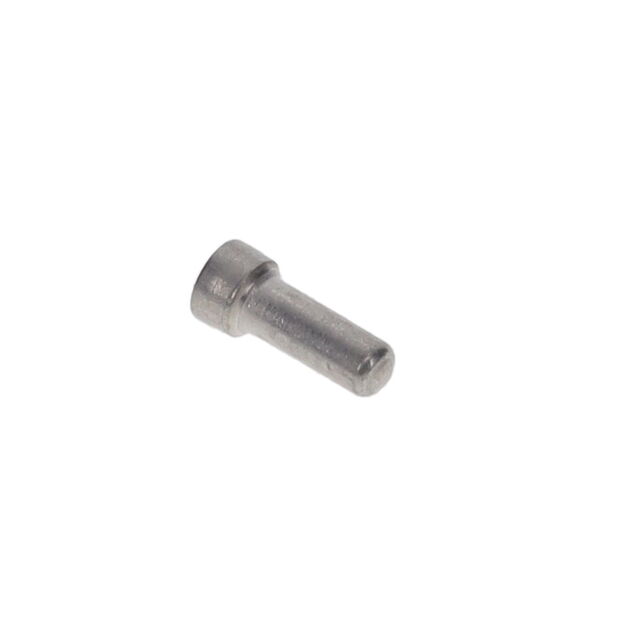

6023-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .015-.021" .136"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Socket Depth	Socket Depth	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 6023-0-15-01-21-02-10-0	-55 C	125 °C	No Tail	Beryllium Copper	1.02 mm	0.04 in	Solder	0.118 in	3 mm	Tin-Lead	0.38 mm	0.022 in	0.015 "	0.56 mm	2.54 µm	100 µin	1.4 mm	0.055 in	0.031 in	0.79 mm	0.136 in	3.45 mm
Mill-Max Manufacturing Corp. 6023-0-15-80-21-14-10-0	-55 C	125 °C	No Tail	Beryllium Copper	1.02 mm	0.04 in	Solder	0.118 in	3 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.25 Ám	10 Áin	1.4 mm	0.055 in	0.031 in	0.79 mm	0.136 in	3.45 mm
Mill-Max Manufacturing Corp. 6023-0-15-80-21-27-10-0	-55 C	125 °C	No Tail	Beryllium Copper	1.02 mm	0.04 in	Solder	0.118 in	3 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.76 Ám	30 Áin	1.4 mm	0.055 in	0.031 in	0.79 mm	0.136 in	3.45 mm
Mill-Max Manufacturing Corp. 6023-0-15-15-21-27-10-0	-55 C	125 °C	No Tail	Beryllium Copper	1.02 mm	0.04 in	Solder	0.118 in	3 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.76 Ám	30 Áin	1.4 mm	0.055 in	0.031 in	0.79 mm	0.136 in	3.45 mm
Mill-Max Manufacturing Corp. 6023-0-15-01-21-27-10-0	-55 C	125 °C	No Tail	Beryllium Copper	1.02 mm	0.04 in	Solder	0.118 in	3 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.76 Ám	30 Áin	1.4 mm	0.055 in	0.031 in	0.79 mm	0.136 in	3.45 mm
Mill-Max Manufacturing Corp. 6023-0-15-01-21-14-10-0	-55 C	125 °C	No Tail	Beryllium Copper	1.02 mm	0.04 in	Solder	0.118 in	3 mm	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	0.25 Ám	10 Áin	1.4 mm	0.055 in	0.031 in	0.79 mm	0.136 in	3.45 mm
