S-L2985 Series

Catalog

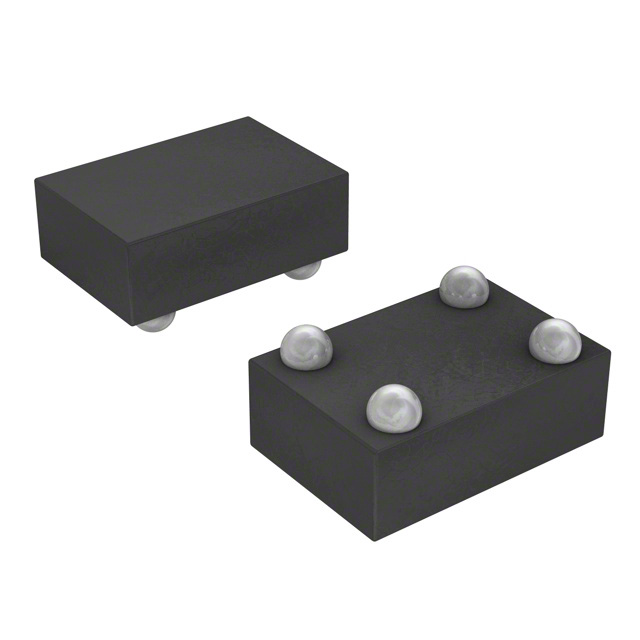

IC REG LINEAR 3.1V 150MA WLP-4B

Part	Control Features	Mounting Type	Output Configuration	Protection Features	Current - Supply (Max)	Package / Case	Package Name	PSRR	Voltage - Input (Max)	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Operating Temperature (Max)	Operating Temperature (Min)	Number of Regulators	Output Type	Current - Output	Voltage Dropout (Max)
ABLIC Inc. S-L2985B31-H4T1	Enable	Surface Mount	Positive	Over Current	90 µA	4-UFBGA WLCSP	WLP-4B	80 dB	6.5 V	3.1 V	0.001 mA	85 °C	-40 °C	1	Fixed	150 mA	0.26 V
ABLIC Inc. S-L2985B26-H4T1	Enable	Surface Mount	Positive	Over Current	90 µA	4-UFBGA WLCSP	WLP-4B	80 dB	6.5 V	2.6 V	0.001 mA	85 °C	-40 °C	1	Fixed	150 mA	0.29 V
ABLIC Inc. S-L2985B32-H4T1	Enable	Surface Mount	Positive	Over Current	90 µA	4-UFBGA WLCSP	WLP-4B	80 dB	6.5 V	3.2 V	0.001 mA	85 °C	-40 °C	1	Fixed	150 mA	0.26 V
ABLIC Inc. S-L2985B25-H4T1	Enable	Surface Mount	Positive	Over Current	90 µA	4-UFBGA WLCSP	WLP-4B	80 dB	6.5 V	2.5 V	0.001 mA	85 °C	-40 °C	1	Fixed	150 mA	0.29 V
ABLIC Inc. S-L2985B30-H4T1	Enable	Surface Mount	Positive	Over Current	90 µA	4-UFBGA WLCSP	WLP-4B	80 dB	6.5 V	3 V	0.001 mA	85 °C	-40 °C	1	Fixed	150 mA	0.26 V
ABLIC Inc. S-L2985B35-H4T1	Enable	Surface Mount	Positive	Over Current	90 µA	4-UFBGA WLCSP	WLP-4B	80 dB	6.5 V	3.5 V	0.001 mA	85 °C	-40 °C	1	Fixed	150 mA	0.26 V
