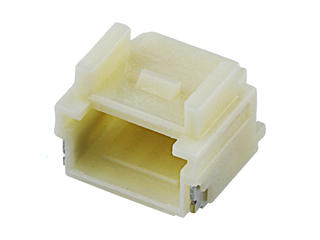

1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, 0.38µm Gold Plated, Outer Positive Lock, 3 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, 0.38µm Gold Plated, Outer Positive Lock, 3 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, 0.38µm Gold Plated, Outer Positive Lock, 3 Circuits, Natural
| Part | Material Flammability Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Number of Positions | Number of Positions Loaded | Connector Type | Shrouding | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Contact Finish - Mating | Contact Shape | Mounting Type | Insulation Material | Contact Material | Current Rating (Amps) | Fastening Type | Voltage Rating | Insulation Height | Insulation Height | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Applications | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | Solder | -40 °C | 105 ░C | 0.039 in | 1 mm | Gold | 4 | All | Header | Shrouded - 4 Wall | 1 | 15 µin | 0.38 µm | Solder Retention | Gold | Rectangular | Surface Mount Right Angle | Nylon Polyamide (PA) | Phosphor Bronze | Varies by Wire Gauge | Locking Ramp | 50 V | 0.185 in | 4.7 mm | Male Pin | 2 µin | 0.051 µm | Natural | Automotive General Purpose Industrial Medical | Board to Cable/Wire |
 Molex | UL94 V-0 | Solder | -40 °C | 105 ░C | 0.039 in | 1 mm | Gold | All | Header | Shrouded - 4 Wall | 1 | 15 µin | 0.38 µm | Solder Retention | Gold | Rectangular | Surface Mount Right Angle | Nylon Polyamide (PA) | Phosphor Bronze | Varies by Wire Gauge | Locking Ramp | 50 V | 0.185 in | 4.7 mm | Male Pin | 2 µin | 0.051 µm | Natural | Automotive General Purpose Industrial Medical | Board to Cable/Wire | |
Molex | UL94 V-0 | Solder | -40 °C | 105 ░C | 0.039 in | 1 mm | Gold | All | Header | Shrouded - 4 Wall | 1 | 15 µin | 0.38 µm | Solder Retention | Gold | Rectangular | Surface Mount Right Angle | Nylon Polyamide (PA) | Phosphor Bronze | Varies by Wire Gauge | Locking Ramp | 50 V | 0.185 in | 4.7 mm | Male Pin | 2 µin | 0.051 µm | Natural | Automotive General Purpose Industrial Medical | Board to Cable/Wire |
