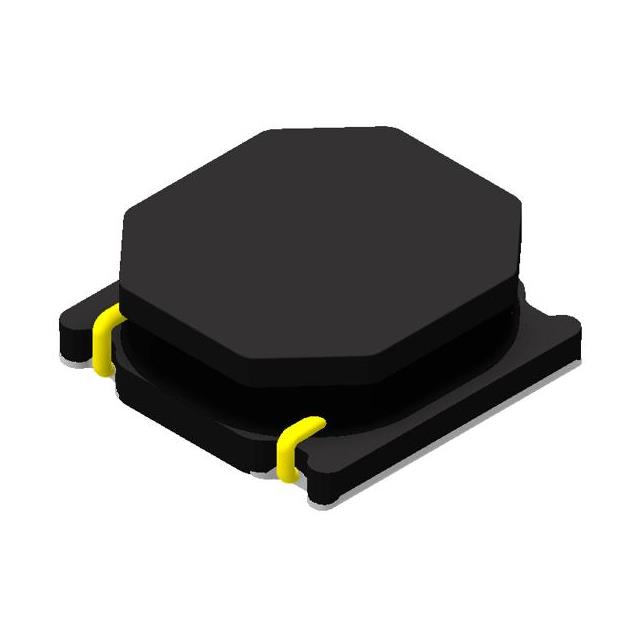

HPC 5020NV Series
Manufacturer: TAI-TECH Advanced Electronics Co., Ltd.
Beta
⌘K
FIXED IND 2.2UH 2.8A 0.032OHM SM
| Part | Inductance | Package / Case | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | DC Resistance (DCR) | Type | Current - Saturation (Isat) | Shielding | Tolerance | Material - Core | Ratings | Supplier Device Package | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAI-TECH Advanced Electronics Co., Ltd. | 2.2 µH | 2020 | 5050 Metric | -55 °C | 125 °C | Surface Mount | 32 mOhm | Wirewound | 3.5 A | Shielded | 20 % | Ferrite | AEC-Q200 | 5020 | 0.197 in | 5 mm | 0.197 " | 5 mm | 2 mm | 0.079 in | 2.8 A | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 22 µH | 2020 | 5050 Metric | -55 °C | 125 °C | Surface Mount | 225 mOhm | Wirewound | 600 mA | Shielded | 20 % | Ferrite | AEC-Q200 | 5020 | 0.197 in | 5 mm | 0.197 " | 5 mm | 2 mm | 0.079 in | 700 mA | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 1 µH | 2020 | 5050 Metric | -55 °C | 125 °C | Surface Mount | 20 mOhm | Wirewound | 3.6 A | Shielded | 20 % | Ferrite | AEC-Q200 | 5020 | 0.197 in | 5 mm | 0.197 " | 5 mm | 2 mm | 0.079 in | 4.5 A | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 10 µH | 2020 | 5050 Metric | -55 °C | 125 °C | Surface Mount | 110 mOhm | Wirewound | 1.2 A | Shielded | 20 % | Ferrite | AEC-Q200 | 5020 | 0.197 in | 5 mm | 0.197 " | 5 mm | 2 mm | 0.079 in | 1.3 A | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 4.7 ÁH | 2020 | 5050 Metric | -55 °C | 125 °C | Surface Mount | 60 mOhm | Wirewound | 2.3 A | Shielded | 20 % | Ferrite | AEC-Q200 | 5020 | 0.197 in | 5 mm | 0.197 " | 5 mm | 2 mm | 0.079 in | 2.1 A | 100 kHz |
