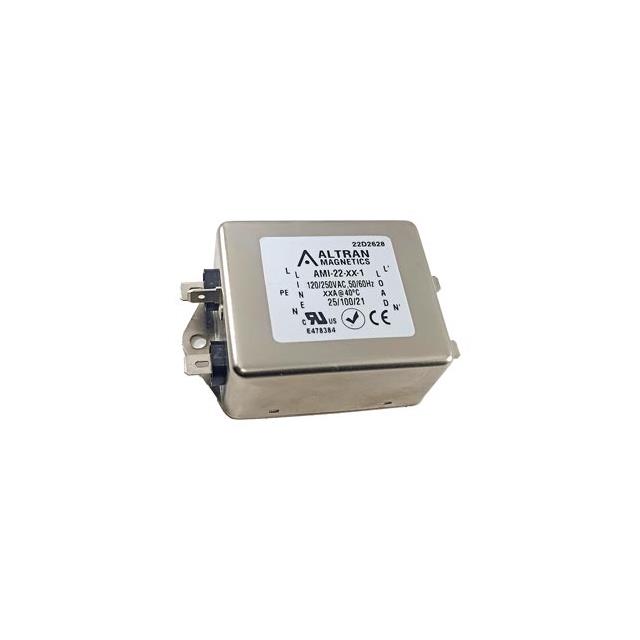

AMI-22 Series

Catalog

LINE FILTER 250VAC 1A CHASSIS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Filter Type	Mounting Type	Configuration	Approval Agency	Frequency - Operating	Current	Inductance	Termination Style	Voltage - Rated AC
Altran Magnetics, LLC AMI-22-1-1	100 °C	-25 °C	General Purpose	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	1 A	12 mH	Quick Connect	250 V
Altran Magnetics, LLC AMI-22A-16-3	100 °C	-25 °C	Safety	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	16 A	650 µH	Quick Connect Wire Leads	250 V
Altran Magnetics, LLC AMI-22-60-6A	100 °C	-25 °C	General Purpose	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	60 A	1 mH	Threaded Post (M4)	250 V
Altran Magnetics, LLC AMI-22A-16-1	100 °C	-25 °C	Safety	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	16 A	650 µH	Quick Connect Wire Leads	250 V
Altran Magnetics, LLC AMI-22A-12-1	100 °C	-25 °C	Safety	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	12 A	700 µH	Quick Connect	250 V
Altran Magnetics, LLC AMI-22A-20-6	100 °C	-25 °C	Safety	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	20 A	600 µH	Quick Connect	250 V
Altran Magnetics, LLC AMI-22-20-6	100 °C	-25 °C	General Purpose	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	20 A	600 µH	Quick Connect	250 V
Altran Magnetics, LLC AMI-22-1-3	100 °C	-25 °C	General Purpose	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	1 A	12 mH	Quick Connect	250 V
Altran Magnetics, LLC AMI-22A-12-3	100 °C	-25 °C	Safety	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	12 A	700 µH	Quick Connect	250 V
Altran Magnetics, LLC AMI-22A-10-1	100 °C	-25 °C	Safety	Single Phase	Chassis Mount	Single Stage	CE cURus	DC ~ 400Hz	10 A	800 µH	Quick Connect	250 V
