H3A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN BASE BTM ENTRY SZ3A
| Part | Style | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Size | Ingress Protection | Lock Location | Housing Finish | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Housing Color | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

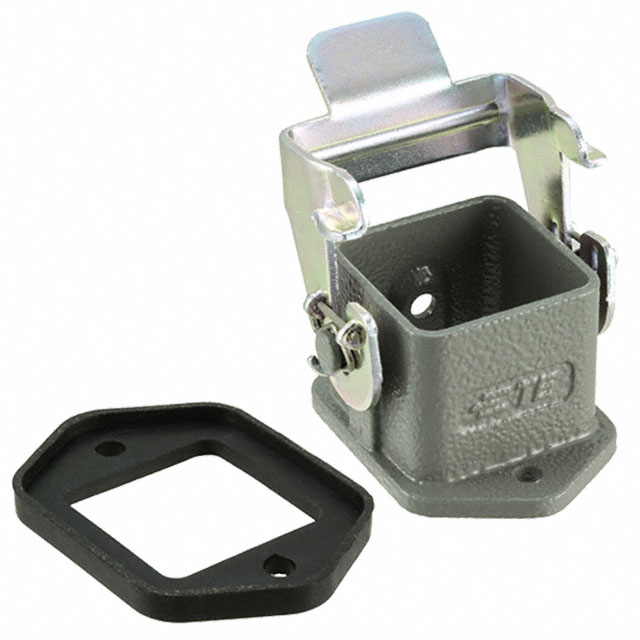

 TE Connectivity AMP Connectors | Bottom Entry | Zinc Alloy | 125 °C | -40 C | Base - Panel Mount | 3 A | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Powder Coated | 1.189 " | 42.2 mm | 24 mm | 30.2 mm | 1.661 " | 0.945 " | ||

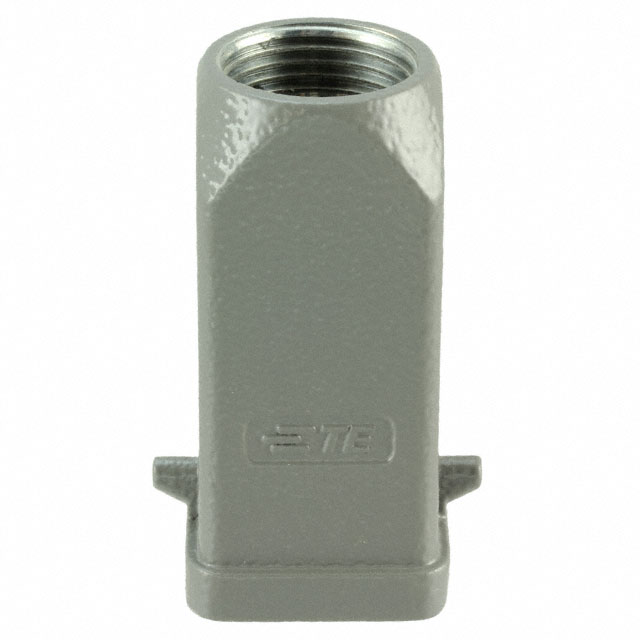

 TE Connectivity AMP Connectors | Top Entry | Zinc Alloy | 125 °C | -40 C | Hood | 3 A | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Powder Coated | 1.055 " | 26.8 mm | 55.78 mm | 26.8 mm | 1.055 in | 2.196 in | Gray | M20 |
