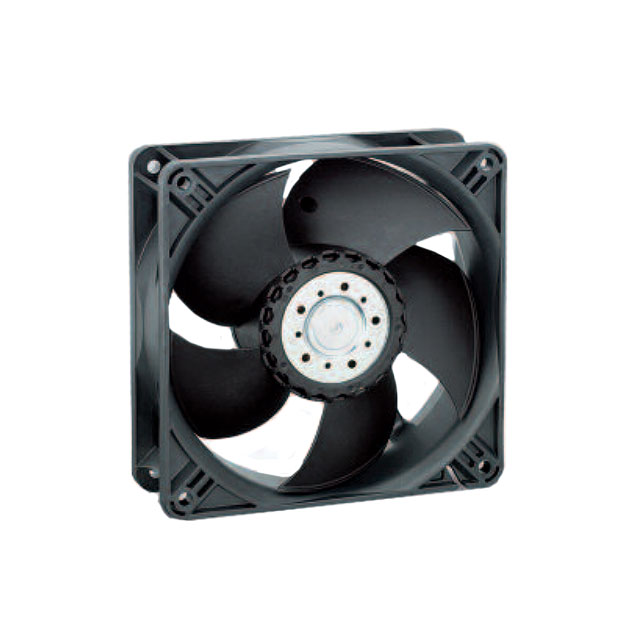

4418 Series

Catalog

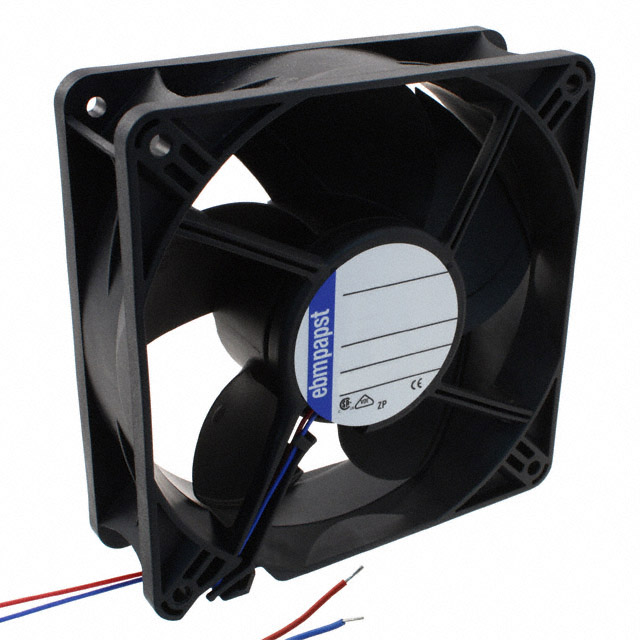

DC FAN AXIAL BALL BEARING 48V 36V TO 60V 98.88CFM 40DB 119 X 119 X 38MM

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Lifetime @ Temp.	Termination	Voltage - Rated	Features	Fan Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Width [y]	RPM	Bearing Type	Weight	Weight	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Noise
ebm-papst Inc. 4418/12ML	36 VDC	60 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	67500 Hrs	3 Wire Leads	48 VDC	Speed Sensor (Tach)	Tubeaxial	Square	119 mm	119 mm	3.2 W	38 mm	3000 RPM	Ball	0.604 lb	273.97 g	2.77 m³/min	99 CFM	-4 °F	167 °F	40 dB(A)
ebm-papst Inc. 4418/2HHP	36 VDC	60 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	40 °C 50000 Hrs	3 Wire Leads	48 VDC	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	Square	119 mm	119 mm	13 W	38 mm	5000 RPM	Ball	0.553 lb	250.84 g	4.7 m³/min	167.7 CFM	-20 ░C	70 °C	55 dB(A)
ebm-papst Inc. 4418H	36 VDC	60 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	57500 Hrs	2 Wire Leads	48 VDC		Tubeaxial	Square	119 mm	119 mm	8.6 W	38 mm	4300 RPM	Ball	0.553 lb	250.84 g	3.96 mł/min	141.3 CFM	-20 ░C	70 °C	50 dB(A)
ebm-papst Inc. 4418L	36 VDC	60 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	67500 Hrs	2 Wire Leads	48 VDC		Tubeaxial	Square	119 mm	119 mm		38 mm	2700 RPM	Ball	0.553 lb	250.84 g	2.47 m³/min	88.4 CFM	-4 °F	167 °F	37 dB
ebm-papst Inc. 4418N	36 VDC	60 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	62500 Hrs	2 Wire Leads	48 VDC		Tubeaxial	Square	119 mm	119 mm	5.4 Watts	38 mm	3650 RPM	Ball	0.553 lb	250.84 g	3.38 mł/min	120.7 CFM	-20 ░C	70 °C	46 dB(A)
ebm-papst Inc. 4418FNH	36 VDC	53 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	40 °C 60000 Hrs	2 Wire Leads	48 VDC		Tubeaxial	Square	119 mm	119 mm	12 W	25.4 mm	5400 RPM	Ball	0.529 lb	239.95 g	3.71 mł/min	132.4 CFM	-20 ░C	70 °C	55 dB(A)
