PSK-S3 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 12V 3W

Part	Voltage - Isolation	Voltage - Output 1	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Number of Outputs	Approval Agency	Features	Applications	Current - Output 1	Efficiency	Mounting Type	Type	DC Voltage - Input (Min) [Min]	Input Type	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Line Regulation	Load Regulation	Package / Case

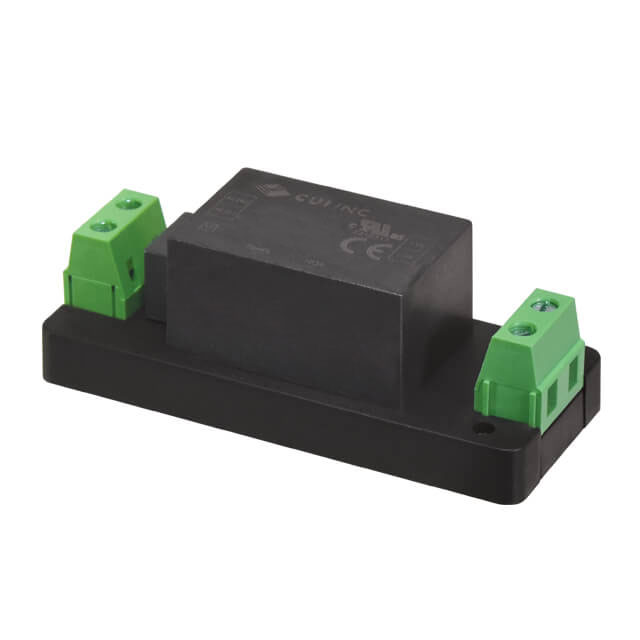

CUI Inc. PSK-S3-12-T	4000 V	12 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	31.5 mm	1.06 in	76 mm	26.8 mm	2.99 in	1.24 in	85 VAC 100 V	264 VAC 370 VDC	3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)	250 mA	77 %	Chassis Mount	Enclosed

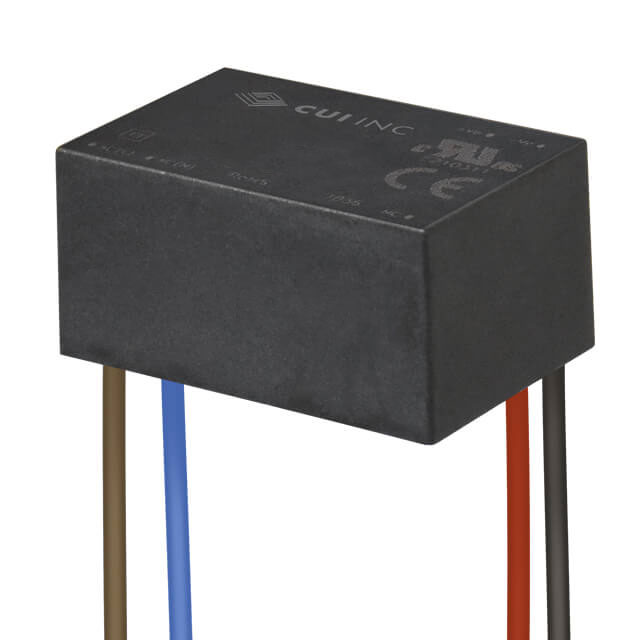

CUI Inc. PSK-S3-12-L	4000 V	12 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	24.5 mm	0.71 in	37 mm	18 mm	1.46 in	0.96 in	85 VAC 100 V	264 VAC 370 VDC	3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)	250 mA	77 %	Chassis Mount	Enclosed

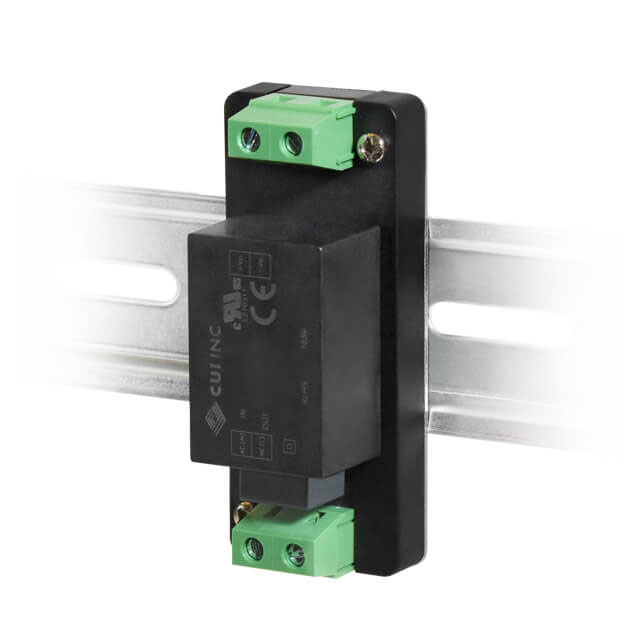

CUI Inc. PSK-S3-12-DIN	4000 V	12 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	31.5 mm	1.24 "	76 mm	31.4 mm	2.99 in	1.24 in			3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)		77 %			100 V	AC or DC	250 mA	370 V	264 VAC	85 VAC
CUI Inc. PSK-S3-5-L	4000 V	5 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	24.5 mm	0.71 in	37 mm	18 mm	1.46 in	0.96 in	85 VAC 100 V	264 VAC 370 VDC	3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)	600 mA	74 %	Chassis Mount	Enclosed

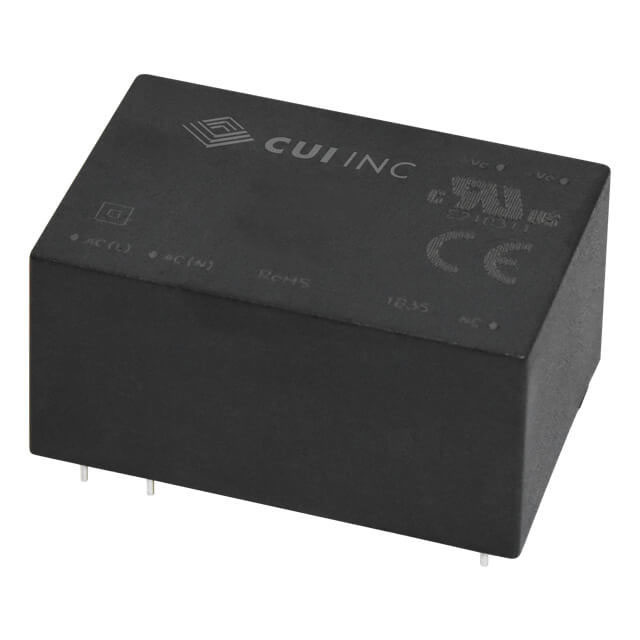

CUI Inc. PSK-S3-12		12 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	24.5 mm	0.71 in	37 mm	18 mm	1.46 in	0.96 in	85 VAC 100 V	264 VAC 370 VDC	3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)		77 %	Through Hole	Enclosed			250 mA				0.5 %	±1%	26-DIP Module 5 Leads
CUI Inc. PSK-S3-24-DIN	4000 V	24 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	31.5 mm	1.24 "	76 mm	31.4 mm	2.99 in	1.24 in			3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)		78 %			100 V	AC or DC	125 mA	370 V	264 VAC	85 VAC
CUI Inc. PSK-S3-9		9 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	24.5 mm	0.71 in	37 mm	18 mm	1.46 in	0.96 in	85 VAC 100 V	264 VAC 370 VDC	3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)		75 %	Through Hole	Enclosed			330 mA				0.5 %	±1%	26-DIP Module 5 Leads
CUI Inc. PSK-S3-15-T	4000 V	15 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	31.5 mm	1.06 in	76 mm	26.8 mm	2.99 in	1.24 in	85 VAC 100 V	264 VAC 370 VDC	3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)	200 mA	77 %	Chassis Mount	Enclosed
CUI Inc. PSK-S3-15		15 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	24.5 mm	0.71 in	37 mm	18 mm	1.46 in	0.96 in	85 VAC 100 V	264 VAC 370 VDC	3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)		77 %	Through Hole	Enclosed			200 mA				0.5 %	±1%	26-DIP Module 5 Leads
CUI Inc. PSK-S3-3-DIN	4000 V	3.3 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	31.5 mm	1.24 "	76 mm	31.4 mm	2.99 in	1.24 in			2.3 W	1	CB Scheme EN IEC UL	Universal Input	ITE (Commercial)		66 %			100 V	AC or DC	700 mA	370 V	264 VAC	85 VAC
