DP4 Series

Catalog

PUSH IN TERM BLK FEED THROUGH 24

Part	Material - Insulation	Stripping Length	Material Flammability Rating	Terminal - Width [y]	Current - IEC	Number of Levels	Voltage - IEC	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Number of Positions	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Type	Fuse Type [y]	Fuse Type [x]	Disconnect Type

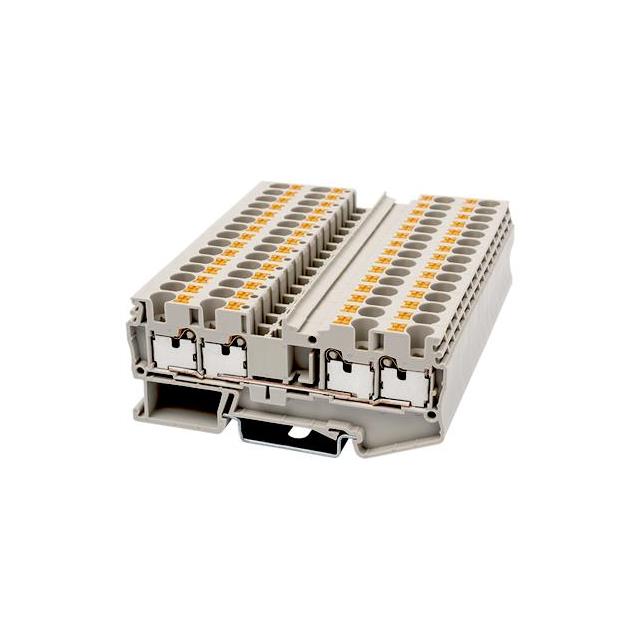

Dinkle Corporation, USA DP4-TR	Nylon Polyamide (PA)	12 mm	UL94 V-0	6.1 mm	32 A	1	800 V	600 V	24 AWG	10 AWG	30 A	4	Push In	4 mm²	0.2 mm²	Gray	Feed Through

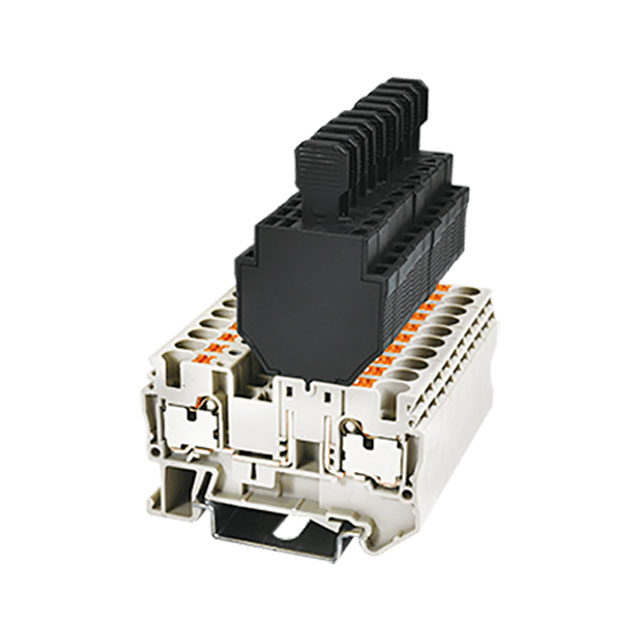

Dinkle Corporation, USA DP4-TFU(5X20)	Nylon Polyamide (PA)	12 mm	UL94 V-0	6.1 mm	10 A	1	400 V	300 V	24 AWG	10 AWG	12 A	2	Push In	6 mm²	0.2 mm²	Gray	Disconnect	20 mm	5 mm	Fuse Removable Plug
