GBC01S Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 1POS
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Style | Mounting Type | Contact Type | Insulation Material | Insulation Height | Insulation Height | Contact Finish - Mating | Number of Rows | Number of Positions Loaded | Fastening Type | Number of Positions | Contact Material | Contact Finish - Post | Material Flammability Rating | Shrouding | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Termination | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

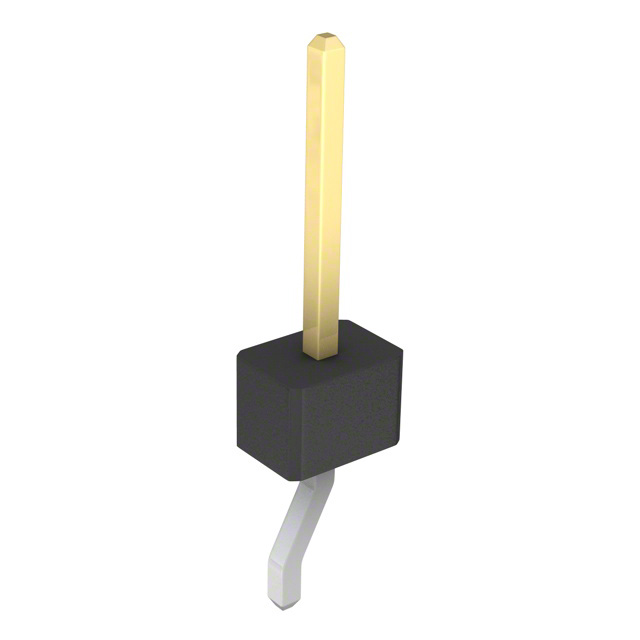

 Sullins Connector Solutions | 2.54 µm | 100 µin | Square | 150 °C | -65 ░C | Black | Board to Board Cable | Surface Mount | Male Pin | Nylon 9T Polyamide (PA9T) | 0.1 in | 2.54 mm | Gold | 1 | All | Push-Pull | 1 | Phosphor Bronze | Tin | UL94 V-0 | Unshrouded | Header Breakaway | 0.25 µm | 10 µin | 3 A | Solder | 8.08 mm | 0.318 in |

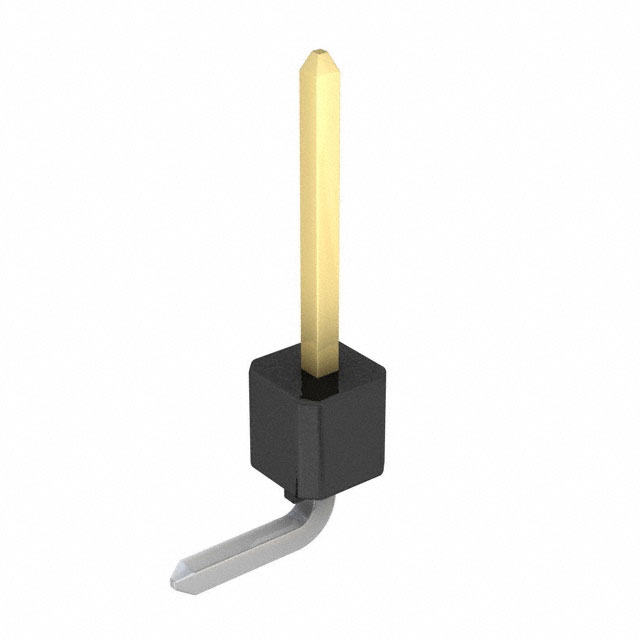

 Sullins Connector Solutions | 2.54 µm | 100 µin | Square | 150 °C | -65 ░C | Black | Board to Board Cable | Right Angle Surface Mount | Male Pin | Nylon 9T Polyamide (PA9T) | 0.14 in | 3.56 mm | Gold | 1 | All | Push-Pull | 1 | Phosphor Bronze | Tin | UL94 V-0 | Unshrouded | Header Breakaway | 0.25 µm | 10 µin | 3 A | Solder | 8.08 mm | 0.318 in |
