G21B0C-P Series
Manufacturer: ODU
Beta
⌘K

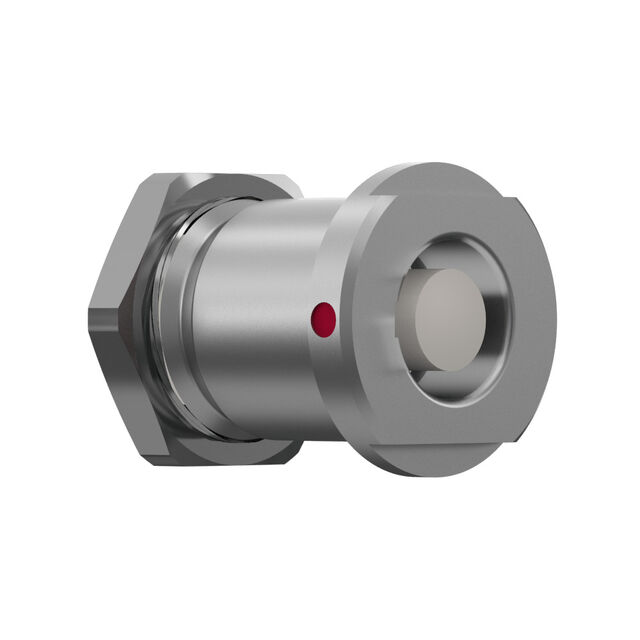

ODU MINI-SNAP RECEPT, STY 2, SZ
| Part | Shell Size - Insert | Features | Mounting Type | Applications | Fastening Type | Shell Material | Shielding | Contact Finish - Mating | Connector Type | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Orientation | Contact Material | Ingress Protection | Number of Positions | Mounting Feature | Voltage Rating | Current Rating (Amps) | Primary Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | Ground | Panel Mount | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Brass | Unshielded | Gold | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 120 °C | -40 C | Chrome over Nickel | 0 | Brass | IP68 - Dust Tight Waterproof | 6 | Bulkhead - Rear Side Nut | 333 V | 7.5 A | Metal | Silver | |
1 | Ground | Panel Mount | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Brass | Unshielded | Gold | Receptacle Female Sockets | Polyetheretherketone (PEEK) | 120 °C | -40 C | Chrome over Nickel | 0 | Brass | IP68 - Dust Tight Waterproof | 5 | Bulkhead - Rear Side Nut | 450 V | 7.5 A | Metal | Silver |
