80122 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

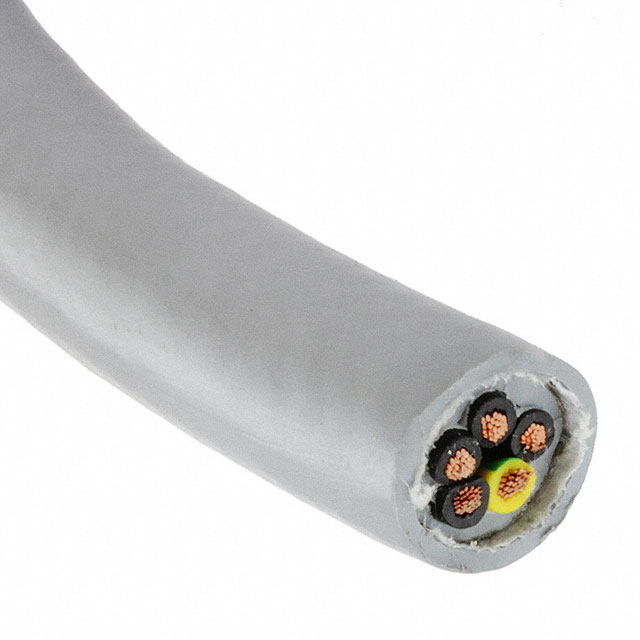

CABLE 5COND 20AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Wire Gauge | Jacket Color | Length [x] | Length [x] | Number of Conductors | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | 20 AWG | Slate | 100 ft | 30.5 m | 5 | Multi-Conductor | Polyphenylene Ether (PPE) | 0.0319 in | 0.81 mm | Copper Tinned | 90 °C | -50 °C | 0.245 " | 6.22 mm | 600 V | Polyurethane (PU) | Braid | 26 | 34 AWG |
